Mazda PYY1-13-70Z Turbo Ejector Fitting Repair
If you are searching for PYY1-13-70Z because the small plastic fitting on your Mazda 2.5T turbocharger has cracked or broken, the damaged connection may be repairable without replacing the entire turbocharger assembly.
Elite Engineering's Mazda 2.5T aluminum turbo ejector fitting is designed as a separate repair for compatible turbo assemblies including PYY1-13-70Z, PY8V-13-700A, and PY8V-13-700B.
What Is PYY1-13-70Z?
PYY1-13-70Z is a reference associated with a Mazda 2.5T turbocharger assembly. The small ejector or vacuum-hose fitting attached to the turbocharger is plastic from the factory and can become brittle after repeated heat cycles.
If that plastic connection breaks, the damage may be limited to the fitting itself rather than the turbocharger housing or rotating assembly.
Which Mazda Models Use This Type of 2.5T Turbo Setup?
Current Elite Engineering fitment for the aluminum ejector repair includes compatible turbocharged SKYACTIV-G 2.5L applications such as:
- Mazda CX-9 2.5T – 2016–2023
- Mazda6 2.5T – 2018–2021
- Mazda CX-5 2.5T – 2019–2025
This repair is intended for the turbocharged 2.5L engine only. It is not intended for naturally aspirated Mazda 2.5L engines.
PYY1 vs. PY8V Turbo References
Depending on the vehicle and turbocharger application, you may see reference numbers such as PYY1-13-70Z, PY8V-13-700A, or PY8V-13-700B. These references are useful when trying to identify whether the turbocharger configuration matches the repair fitting.
Because complete vehicle and turbocharger configurations can vary, compare the fitting location, hose connections, and product photos before ordering.
What Usually Breaks?
The failure is typically the small plastic ejector fitting or hose nipple attached to the turbocharger. Heat and age can make the original plastic brittle, and it may crack or snap during hose removal or nearby service.
If the turbocharger housing itself is still undamaged, replacing only the failed fitting can avoid replacing an otherwise serviceable turbocharger assembly.
How to Confirm You Need the Ejector Fitting Repair
- Confirm the vehicle has the turbocharged SKYACTIV-G 2.5L engine.
- Locate the plastic ejector or vacuum-hose fitting on the turbocharger.
- Inspect it for cracking, a broken hose nipple, or damage around the connection.
- Compare the fitting orientation and hose connections with the product photos.
- Confirm the turbocharger housing is not cracked or otherwise damaged.
Possible Symptoms and Trouble Codes
A damaged ejector or related hose connection can interfere with the turbocharged engine's purge and vacuum system. Depending on the failure and vehicle, related faults can include codes such as P04F0, P144C, or P0496.
A trouble code by itself does not prove the ejector fitting is faulty. Inspect the fitting, hoses, purge plumbing, and related components before replacing parts.
What Comes With the Elite Engineering Repair?

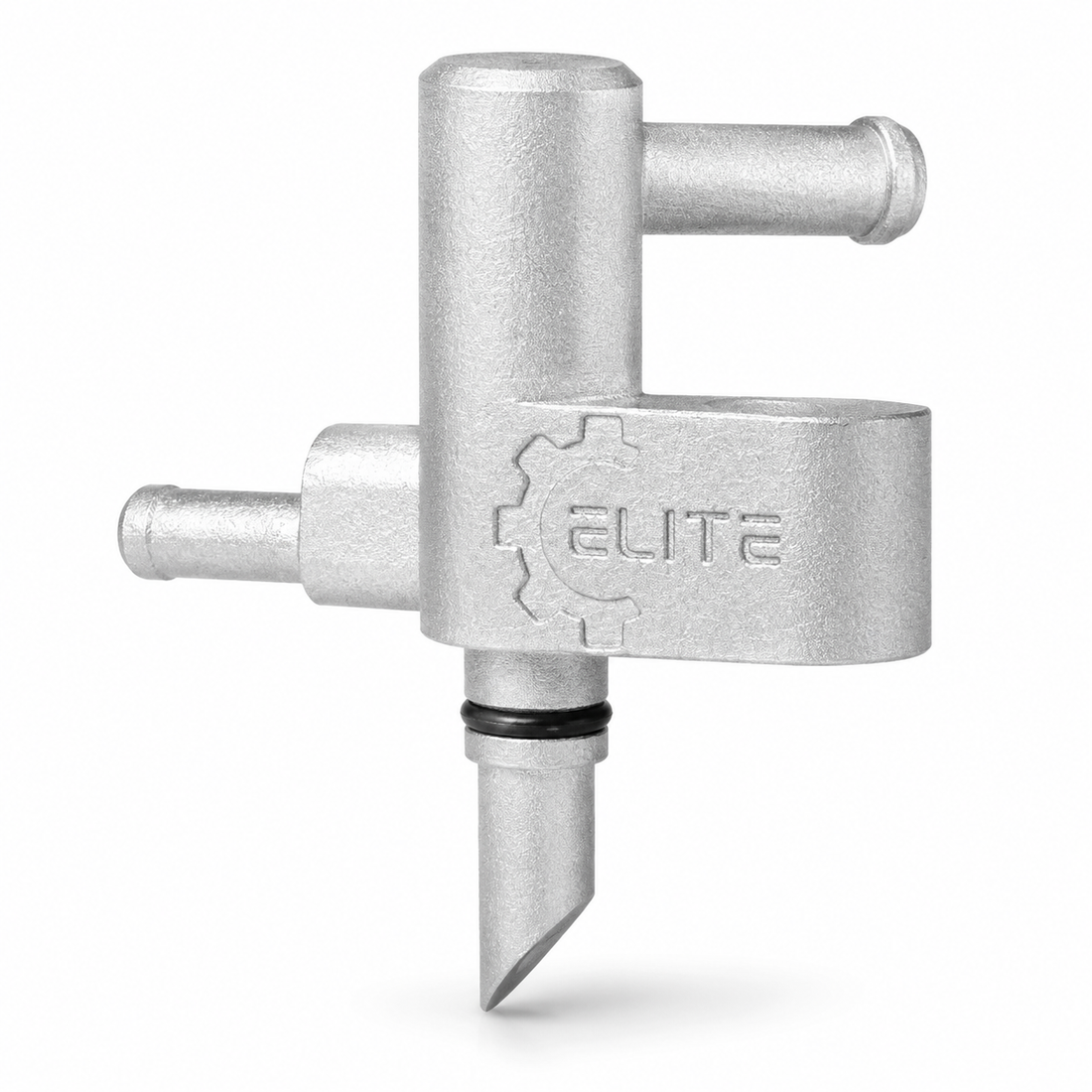

- Aluminum Mazda 2.5T turbo ejector fitting
- New O-ring
- New Allen-head mounting bolt
The aluminum replacement restores the factory-style connection while eliminating the brittle plastic fitting at that location.
Installation Overview
The original fitting is retained by a tamper-resistant fastener, and part of the plastic body obstructs direct access to it. Removal requires carefully exposing the fastener without damaging the turbocharger housing or allowing debris into an open passage.
For the full procedure, see our Mazda 2.5T turbo ejector replacement guide.
Do You Need to Replace the Whole Turbo?
Not necessarily. If the failure is limited to the plastic ejector fitting and the turbocharger itself is otherwise serviceable, a separate aluminum fitting repair can address the broken connection without replacing the complete turbocharger assembly.
Read our detailed explanation: Do You Really Need a New Turbo for a Broken Mazda 2.5T Plastic Fitting?
Shop the Mazda 2.5T Turbo Ejector Repair
See product photos, current availability, included hardware, and fitment information here:
Mazda 2.5T Turbo Ejector Fitting Repair – Aluminum Replacement for CX-5, CX-9 & Mazda6
Related Mazda 2.5T Guides
- What Is the Plastic Fitting on a Mazda 2.5T Turbo?
- How to Replace the Mazda 2.5T Turbo Ejector Fitting
- Mazda 2.5T P04F0, P144C & P0496 Explained
Frequently Asked Questions
Is PYY1-13-70Z the small plastic ejector fitting?
PYY1-13-70Z is used here as a turbocharger assembly reference. The Elite Engineering product repairs the separate plastic ejector fitting attached to compatible turbocharger assemblies.
Does this fit a Mazda CX-9 2.5T?
The current product listing includes compatible Mazda CX-9 2.5T applications from 2016–2023.
Does this fit a Mazda CX-5 2.5T?
The current product listing includes compatible Mazda CX-5 2.5T applications from 2019–2025.
Does this fit a Mazda6 2.5T?
The current product listing includes compatible Mazda6 2.5T applications from 2018–2021.
Can a broken ejector fitting cause a check-engine light?
A damaged fitting or hose connection can contribute to purge or EVAP-related faults, but codes alone do not confirm the fitting is the cause. Inspect the system before replacing parts.
