If your Mazda 2.5T has a check engine light with an EVAP or purge-related trouble code, the problem may not be as simple as replacing a gas cap or purge valve.

Turbocharged engines introduce another challenge to the EVAP system: what happens to purge flow when the intake manifold is under boost instead of vacuum?

That's where components such as the EVAP ejector, check valves, purge valve, vacuum lines, and turbo inlet connections become important.

If you are diagnosing codes such as:

• P04F0

• P144C

• P0496

this guide explains what those codes mean, how purge operation changes when the engine is under boost, and why the small plastic ejector fitting mounted to the turbocharger deserves a close inspection.

First, What Does the EVAP System Actually Do?

Your vehicle's evaporative emissions system captures fuel vapors from the fuel tank instead of allowing them to escape into the atmosphere.

Those vapors are stored in the charcoal canister until the engine computer determines that conditions are correct to purge them.

The purge valve then controls when vapor is allowed to travel from the EVAP system into the engine, where it can be burned.

On a naturally aspirated engine, intake manifold vacuum provides a convenient source for pulling those vapors into the engine.

A turbocharged engine presents a problem.

When the turbocharger is producing boost, the intake manifold may be under positive pressure instead of vacuum.

You don't want boost pressure traveling backward through the EVAP system and pressurizing the fuel tank.

Turbocharged dual-path EVAP systems therefore use check valves and an ejector/venturi arrangement to control purge flow under boost. In documented boosted EVAP systems, the ejector uses airflow to generate vacuum so purge can continue even while the intake manifold is pressurized.

What Is the Turbo Ejector?

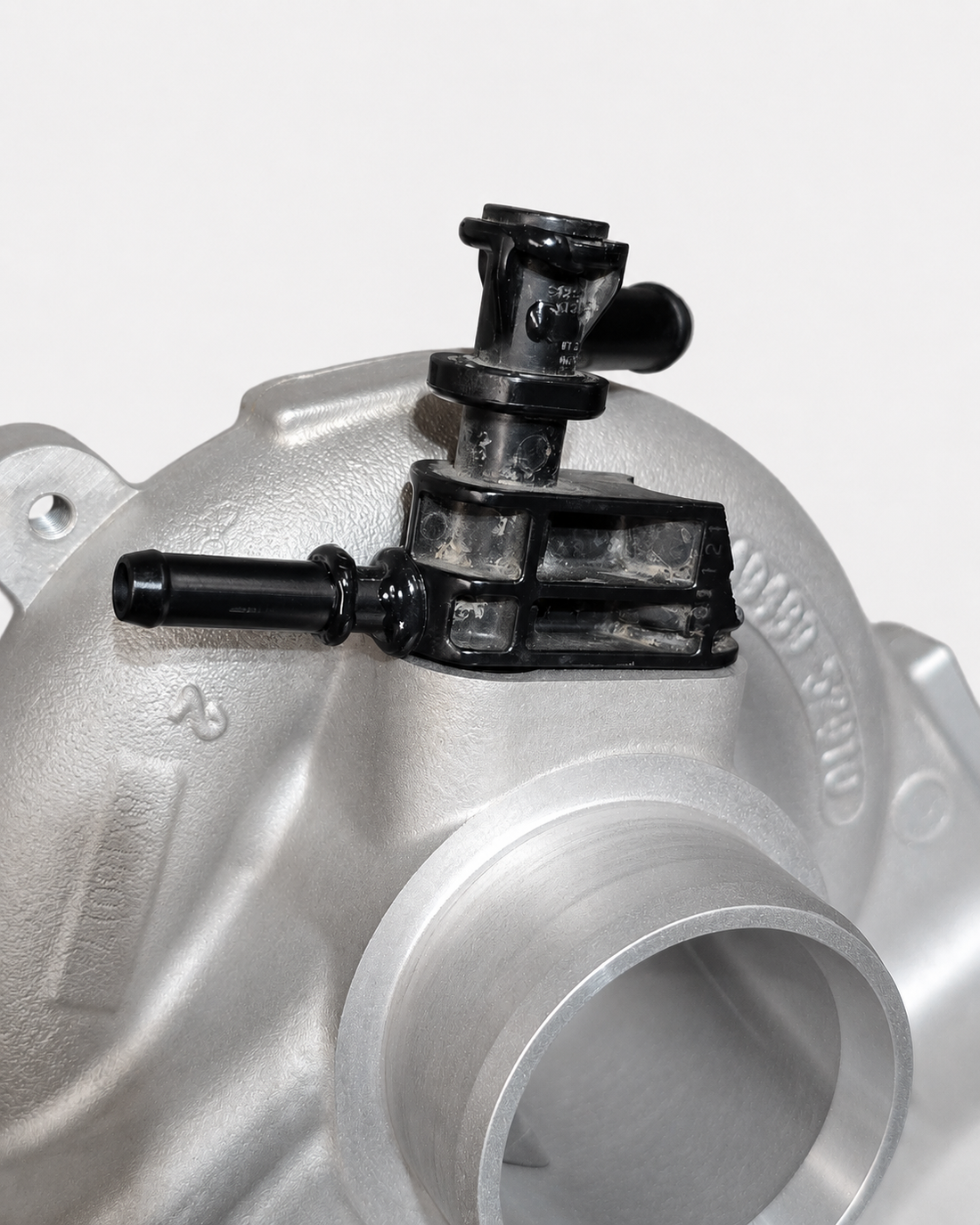

The ejector is the small fitting mounted to the turbocharger that many owners have trouble identifying.

You may hear it called a:

• Turbo ejector

• EVAP ejector

• Turbo vacuum fitting

• Vacuum hose fitting

• Turbo nipple

• Vacuum nipple

• Hose nipple

• Hose barb

• Turbo hose connector

• Plastic fitting on the turbo

On compatible Mazda 2.5T applications, the factory component is plastic.

That becomes important because a cracked housing, broken nipple, damaged connection, or leak at this fitting can interfere with the airflow and vacuum path used by the EVAP system.

Why Purge Operation Is Different Under Boost

Think of the system as having two different operating situations.

Engine Under Vacuum

When intake manifold vacuum is available, that vacuum can help pull fuel vapors through the purge system and into the engine.

Engine Under Boost

When the turbocharger creates boost, the intake manifold is pressurized.

A check valve is needed to prevent that boost pressure from traveling backward toward the EVAP system and fuel tank.

At the same time, the system still needs a way to produce vacuum if purge is required.

That's where the ejector comes in.

The ejector uses a venturi effect to create a vacuum source during boosted operation. Technical documentation for dual-path boosted EVAP systems describes purge vapor being drawn through the ejector and into the turbocharger inlet path while the engine is under boost.

That is why an EVAP problem on a turbocharged engine can behave differently from the more familiar purge-valve problems seen on naturally aspirated vehicles.

P04F0 – EVAP System High Load Purge Line “A” Performance

P04F0 is one of the most important codes to understand when diagnosing this system.

The standard description is:

EVAP System High Load Purge Line “A” Performance

The key words are High Load Purge.

This is not simply a generic EVAP leak code.

It concerns the performance of the EVAP purge path during operating conditions where the engine is under higher load. Published diagnostic documentation for boosted EVAP systems shows P04F0 being monitored during boosted operation and associates the monitor with purge check-valve/ejector performance.

Possible problems in this area can include:

• Damaged EVAP ejector

• Cracked or broken ejector fitting

• Restricted ejector passages

• Disconnected or leaking EVAP hoses

• Incorrectly connected hoses

• Failed check valve

• Purge valve problem

• Vacuum leak

• Restriction in the high-load purge path

The important point is:

P04F0 does not automatically condemn the ejector.

It tells you the high-load purge system is not behaving the way the PCM expects.

The ejector and its connections should be part of the diagnosis.

Could a Broken Mazda Turbo Ejector Cause P04F0?

Potentially, yes.

If the ejector is cracked, physically broken, leaking, restricted, or has a damaged hose connection, it can interfere with the vacuum and vapor-flow path the system relies on.

A diagnostic source for P04F0 specifically lists restricted ejector connections, damaged ejectors, damaged check valves, purge-flow problems, and EVAP hose concerns among possible causes.

If you have a Mazda 2.5T with P04F0, visually inspecting the plastic ejector and every hose attached to it is a very reasonable part of the diagnostic process.

P144C – EVAP Purge Check Valve Performance

Another code closely associated with boosted purge systems is P144C.

The commonly documented description is:

Evaporative Emission System Purge Check Valve Performance

Diagnostic documentation for turbocharged EVAP systems shows this monitor operating during boosted conditions. The system evaluates whether the check-valve and ejector side of the purge system produces the expected pressure or vacuum response.

Depending on the exact system and calibration, possible causes can involve:

• Restricted ejector connections

• Failed or sticking EVAP check valve

• Damaged ejector

• Broken vacuum fitting

• Disconnected EVAP line

• Leaking hose connection

• Incorrect purge flow

Later OBD documentation for similar boosted systems notes that P144C has been superseded/replaced by P04F0 in newer strategies, which helps explain why two vehicles with similar purge-system problems may store different codes.

Why P144C Is Interesting on a Turbocharged Engine

P144C is especially useful because it helps point the technician toward a problem involving purge-system performance during boost, rather than simply saying the EVAP system has a leak somewhere.

That should put several components on your inspection list:

Purge valve → check valves → EVAP hoses → ejector → turbo inlet connection

If the plastic ejector is visibly cracked or broken, that is an obvious physical problem that needs to be corrected before continuing diagnosis.

P0496 – EVAP Flow During a Non-Purge Condition

Then we have P0496.

Its commonly used definition is:

EVAP System Flow During a Non-Purge Condition

This code describes almost the opposite type of problem.

Instead of the system failing to achieve proper purge flow when it wants purge, the PCM believes purge flow or EVAP-system vacuum is occurring when purge isn't supposed to be happening.

A common cause of P0496 is a purge valve that does not seal completely when commanded closed.

Other possibilities can include:

• Stuck-open purge valve

• EVAP plumbing problems

• Incorrect pressure-sensor information

• Wiring or electrical faults

• Other unwanted vapor-flow paths

Does P0496 Mean the Turbo Ejector Is Bad?

No.

This is important.

Don't replace the ejector solely because you have P0496.

P0496 is useful to include in an overall Mazda EVAP discussion because it deals with incorrect purge flow, but diagnostically it is different from P04F0 and P144C.

If the PCM is detecting flow during a period when the purge valve should be closed, the purge valve itself should be tested carefully.

The ejector should still be visually inspected when you're checking the complete EVAP system, particularly if the plastic fitting is cracked or damaged, but P0496 alone is not proof that the ejector caused the fault.

P04F0 vs P144C vs P0496

Here's the easiest way to think about the three codes.

P04F0

High-load purge system isn't performing correctly.

Think:

“Can the EVAP system purge properly while the engine is under load/boost?”

P144C

Purge check-valve performance problem.

Think:

“Are the check-valve/ejector portions of the boosted purge system behaving correctly?”

P0496

Flow is occurring when purge shouldn't be occurring.

Think:

“Why is the EVAP system flowing when the PCM isn't asking it to?”

That difference is extremely important when diagnosing the vehicle.

Don't Just Throw a Purge Valve at Every EVAP Code

It's common to see an EVAP code and immediately replace the purge valve.

Sometimes that's the right repair.

Sometimes it isn't.

On a turbocharged Mazda 2.5T, there are additional hoses, check-valve functions, and the turbo-mounted ejector that need to be considered.

If you have P04F0 or P144C, spend some time looking at the boosted/high-load side of the purge system instead of assuming you have the same failure as a generic P0496.

A proper diagnosis may include:

• Scan all stored and pending DTCs

• Inspect the purge valve

• Verify the purge valve seals when commanded closed

• Inspect the EVAP hoses

• Check hose routing

• Check for loose connections

• Inspect the turbo ejector

• Look closely for cracks around the plastic hose nipples

• Inspect the ejector mounting area

• Check for restrictions

• Verify check-valve operation

• Smoke-test the EVAP system when appropriate

A Ford technical service bulletin for vehicles using a comparable boosted EVAP configuration specifically instructs technicians facing P04F0/P144C to inspect EVAP connections before continuing deeper diagnostics, reinforcing why visual inspection of hoses and connections is an important first step.

Inspect the Plastic Ejector Closely

The factory ejector can look fine at first glance.

Look closely around:

• Hose nipples

• Base of each hose connection

• Plastic seams

• Mounting area

• O-ring connection

• Areas where hoses have been removed previously

Move the hoses gently and watch for movement that shouldn't be there.

A small crack may open when the hose is moved.

And sometimes the diagnosis is much simpler:

The plastic nipple has completely snapped off.

What If the Ejector Is Already Broken?

This is the situation that led Elite Engineering to develop our replacement.

If the turbocharger itself is functioning correctly but the plastic ejector fitting has broken, replacing an entire turbocharger assembly simply because of that small component may not be necessary.

The Elite Engineering Mazda 2.5T Aluminum Turbo Ejector Replacement is designed to replace the damaged factory plastic fitting separately.

Our replacement is manufactured from AlSi10Mg aluminum and retains the required hose connections and O-ring sealing location.

It also includes a new Allen-head mounting bolt.

Why Does the Replacement Include a New Bolt?

The factory plastic ejector is secured using a tamper-resistant bolt.

Unfortunately, part of the plastic body makes that bolt difficult to access.

To remove the original ejector, the rear corner of the old plastic component can be carefully cut or broken away to expose the bolt.

Once exposed, the original bolt can typically be removed by either:

• Cutting a slot into the bolt head and using a flat-blade screwdriver

• Removing enough plastic to grip the bolt with locking pliers or vise grips

The factory bolt does not need to be reused.

The Elite Engineering replacement comes with a new Allen-head bolt for installation.

Which Mazda 2.5T Vehicles Use This Style Ejector?

Our replacement is designed for select 2.5L SKYACTIV-G Turbo applications, including compatible:

Mazda CX-9 2.5T

2016–2023

Mazda6 2.5T

2018–2021

Mazda CX-5 2.5T

2019–2025

Always verify the original turbocharger and ejector configuration before ordering.

Turbocharger Reference Numbers

Applications using this ejector style may be associated with turbocharger assembly/reference numbers including:

• PYY1-13-70Z

• PY8V-13-700A

• PY8V-13-700B

If you're searching one of those numbers because the plastic fitting on your turbo broke, you may be looking for the component our replacement is designed to repair.

Searches That May Lead You Here

If you're troubleshooting this system, you may have searched for:

• Mazda P04F0

• Mazda P144C

• Mazda P0496

• CX-9 P04F0

• CX-9 P144C

• CX-5 P04F0

• Mazda6 P144C

• Mazda EVAP purge problem

• Mazda purge during boost

• Mazda purge flow during non-purge

• Mazda high-load purge

• Mazda turbo ejector

• Mazda EVAP ejector

• Mazda turbo vacuum fitting

• Mazda turbo nipple

• Mazda broken plastic turbo fitting

• PYY1-13-70Z fitting

• PY8V-13-700A fitting

• PY8V-13-700B fitting

The terminology may be different, but many of these searches involve diagnosing the same general EVAP and purge system.

The Trouble Code Is a Starting Point, Not a Parts Order

A diagnostic trouble code tells you what the PCM detected.

It doesn't automatically tell you which component to replace.

For example:

P0496 should make you think seriously about unwanted purge flow and whether the purge valve is sealing.

P04F0 and P144C should make you pay particular attention to the high-load/boost purge path, check valves, hoses, connections, and ejector.

If the turbo ejector is visibly broken, cracked, or leaking, you've found a physical fault that needs to be repaired.

But if it looks perfect, continue diagnosing the system rather than replacing parts based solely on a code.

Found a Broken Plastic Fitting on the Turbo?

If you've confirmed that the plastic ejector on your Mazda 2.5T is damaged, Elite Engineering offers a standalone aluminum replacement.

Instead of replacing a complete turbocharger because of one broken plastic hose fitting, our repair allows the damaged ejector to be replaced separately when the turbocharger itself is otherwise serviceable.

Shop the Elite Engineering Mazda 2.5T Aluminum Turbo Ejector

▶ https://eliteengineering.shop/products/mazda-2-5t-turbo-vacuum-hose-fitting-ejector-repair-aluminum-replacement

Need Installation Instructions?

We've put together a complete guide showing how to remove the original tamper-resistant bolt and install the aluminum replacement.

How to Replace the Mazda 2.5T Turbo Ejector Fitting – Step-by-Step

▶ https://eliteengineering.shop/blogs/news/how-to-replace-the-mazda-2-5t-turbo-ejector-fitting



Don't Even Know What the Broken Part Is Called?

We've got you covered there too.

What Is the Plastic Fitting on a Mazda 2.5T Turbo?

▶ https://eliteengineering.shop/blogs/news/what-is-the-plastic-fitting-on-a-mazda-2-5t-turbo-ejector-vacuum-fitting-hose-nipple-explained

Frequently Asked Questions

What does Mazda code P04F0 mean?

P04F0 is EVAP System High Load Purge Line “A” Performance. The diagnostic relates to the performance of the purge system during high-load/boosted operation.

What does P144C mean?

P144C is commonly defined as Evaporative Emission System Purge Check Valve Performance. On documented boosted EVAP systems, the monitor evaluates purge/check-valve operation during boosted conditions.

What does P0496 mean?

P0496 means EVAP flow during a non-purge condition—the system is detecting evidence of purge flow when purge isn't supposed to be occurring.

Does P0496 mean I need a turbo ejector?

No. A stuck-open or leaking purge valve is an important possibility with P0496. Diagnose the system rather than replacing the ejector based on the code alone.

Can a broken ejector cause an EVAP problem?

A damaged or leaking ejector can affect the boosted purge path. Diagnostic information for P04F0 specifically includes damaged ejectors and restricted ejector connections among possible faults.

Do I have to replace the entire turbo if the plastic fitting breaks?

Not necessarily. If the turbocharger itself is serviceable and the failure is limited to the ejector fitting, the Elite Engineering aluminum ejector is designed as a standalone repair for that component.

What comes with the replacement ejector?

The Elite Engineering replacement includes the aluminum ejector, sealing O-ring, and a new Allen-head mounting bolt.
