How to Replace the Mazda 2.5T Turbo Ejector Fitting
Share
The small plastic ejector fitting mounted to the turbocharger on certain Mazda 2.5L turbo engines can become brittle from years of engine-bay heat. It may crack when a hose is removed, break when it is accidentally bumped, or fail during nearby service work.
This guide explains how to remove the factory tamper-resistant mounting bolt using flush-cut pliers and a spring-loaded center punch, then install the new aluminum ejector with the supplied O-ring and Allen-head bolt.
Important: Allow the engine and turbocharger to cool completely before starting. Wear safety glasses and keep plastic fragments, dirt, and other debris out of open hoses and turbocharger passages. If you are not comfortable performing this repair, have it completed by a qualified technician.
The kit includes the aluminum ejector fitting, O-ring and Allen-head bolt. Confirm the turbocharged 2.5L engine, hose connections and mounting location against the product photos. A fault code alone does not establish that this fitting needs replacement.
This procedure applies to compatible Mazda vehicles equipped with the 2.5L SKYACTIV-G Turbo engine, including select:
2016–2023 Mazda CX-9 2.5 Turbo
2019–2025 Mazda CX-5 2.5 Turbo
2018–2021 Mazda6 2.5 Turbo
Compatible applications may use turbocharger assembly or reference numbers PYY1-13-70Z, PY8V-13-700A, or PY8V-13-700B. Always compare the original ejector, hose connections, and mounting location with the product photos before ordering. This part is not intended for naturally aspirated Mazda 2.5L engines.
New Allen-head mounting bolt supplied with the replacement ejector
Flush-cut pliers, also called flush cutters
Spring-loaded punch
Correct Allen key or Allen socket for the supplied bolt
Safety glasses
PHOTO 1 — Tools used for removal
Before You Begin
Access to the turbocharger area varies by vehicle. Remove any engine covers, air ducts, or other components needed to reach the ejector, following the correct service procedure for your model.
Make sure the turbocharger is cool. Clean loose dirt from the work area and place clean shop towels where needed to catch plastic fragments. Do not leave any hose, port, or turbocharger passage open where debris could enter.
Step 1: Locate the Factory Turbo Ejector
Locate the plastic ejector attached directly to the turbocharger housing. It has multiple hose connections and is secured to the turbocharger by a single tamper-resistant bolt.
Before disconnecting anything, take a clear photo of the ejector and hose routing. This will give you a reference when the hoses are reconnected.
Step 2: Disconnect the Hoses
Carefully disconnect the hoses attached to the factory ejector. Do not pull hard to the side because the heat-aged plastic nipples may already be brittle.
Inspect each hose as it is removed. If part of the ejector has already broken, make sure no plastic pieces remain inside the hose. Keep every disconnected hose and open port protected from dirt and debris.
Step 3: Cut Away the Plastic Beside the Factory Bolt
The factory bolt cannot be removed easily while the surrounding plastic remains intact. Because the original ejector is being replaced, use the flush cutters to carefully cut away the side of the plastic body surrounding the bolt head.
Remove only enough plastic to expose the outer edge of the bolt head and create room for the center punch. Take small cuts and keep the cutting jaws away from the aluminum turbocharger housing underneath the ejector.
Do not pry against, gouge, or cut into the turbocharger housing. Remove all loose plastic fragments as you work.
Step 4: Break the Tamper-Resistant Bolt Loose
Once the edge of the bolt head is exposed, place the point of the spring-loaded center punch near the outside edge of the bolt head. Angle the punch so each strike pushes the bolt in the counterclockwise, or loosening, direction when viewed from the bolt-head side.
Activate the punch. Reposition it as needed and repeat until the bolt begins to rotate counterclockwise. Keep the punch on the bolt head—do not allow it to slip onto the aluminum turbocharger housing.
The goal is only to break the bolt loose. Once it moves, it can normally be turned the rest of the way out by hand.
Step 5: Remove the Bolt and Original Ejector
Finish unthreading the loosened factory bolt and remove it. The original tamper-resistant bolt will not be reused.
Pull the old ejector straight out of the turbocharger housing. The O-ring may make it feel slightly tight. Work it out carefully and avoid prying against the aluminum housing.
Confirm that the old O-ring came out with the ejector. If it remained in the mounting bore, remove it carefully without scratching the sealing surface.
Step 6: Inspect and Clean the Mounting Area
Before installing the replacement, inspect the opening and surrounding mounting surface. Remove any:
Broken plastic
Old O-ring material
Dirt or loose debris
Damage that could prevent the new ejector from seating correctly
The bore and sealing area must be clean and undamaged. Do not install the new ejector over the old O-ring or force it into a dirty or damaged opening.
Step 7: Install the New O-Ring and Aluminum Ejector

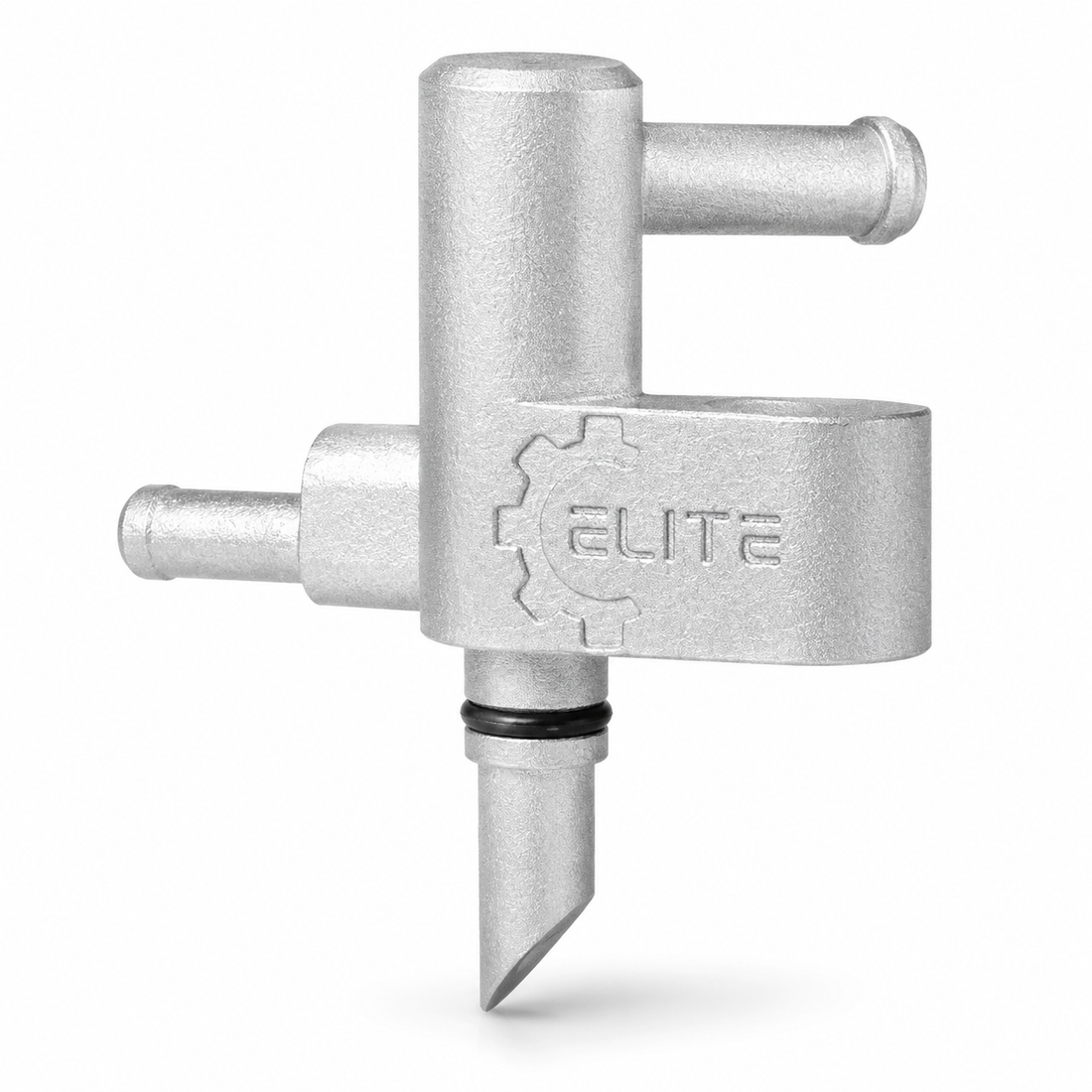

Make sure the new O-ring is installed in the correct groove on the Elite Engineering aluminum ejector. Confirm that it is seated evenly and is not twisted, cut, or pinched.
Align the replacement ejector with the opening and press it straight into the turbocharger housing. Do not force it in at an angle. When the ejector is fully seated, its mounting hole should line up with the threaded hole in the turbocharger.
Step 8: Install the Supplied Allen-Head Bolt
Insert the supplied Allen-head bolt through the mounting hole and start threading it by hand. Starting the bolt by hand reduces the risk of cross-threading the aluminum turbocharger housing.
After confirming that the bolt turns smoothly and the ejector is seated correctly, tighten it securely with the proper Allen key or socket. Do not overtighten it. The bolt only needs to retain the ejector and keep it properly seated; excessive force could damage the aluminum threads or the replacement part.
Do not reuse the original tamper-resistant bolt.
Step 9: Reconnect the Hoses and Inspect the Repair
Reconnect every hose in its original location using the photo taken before disassembly as a reference. Make sure each connection is fully seated and that no hose is kinked, cracked, or left disconnected.
Reinstall any components removed for access. Start the engine and inspect the repair area. Confirm that the ejector remains fully seated and listen for signs of a vacuum or boost leak. If diagnostic trouble codes were present, clear them after completing the repair and verify that they do not return.
Why Replace the Factory Plastic Ejector With Aluminum?
The factory ejector is mounted in a high-temperature area. Repeated heating and cooling can make the plastic brittle, increasing the chance that a hose nipple will crack or snap during service.
The Elite Engineering replacement is manufactured from AlSi10Mg aluminum and uses the factory-style mounting location and hose arrangement. It can be used to repair an already broken ejector or as a preventative reliability upgrade before the original plastic fitting fails. It is a durability upgrade, not a performance modification.
What is the plastic fitting on the Mazda 2.5T turbo called?
It is commonly called the turbo ejector. It may also be described as a turbo vacuum fitting, EVAP fitting, vacuum-hose fitting, hose nipple, hose barb, or plastic turbo fitting.
Why are flush cutters needed?
The original plastic ejector partly surrounds the tamper-resistant bolt. Flush cutters allow a small section of the old plastic body to be removed so the edge of the bolt head can be reached with the spring-loaded punch.
How does the spring-loaded punch remove the bolt?
The punch is positioned near the outside edge of the bolt head and angled so its force pushes the bolt counterclockwise. Repeated strikes break the bolt loose, after which it can normally be removed by hand.
Do I reuse the original bolt or O-ring?
No. Install the new O-ring and Allen-head bolt supplied with the Elite Engineering replacement ejector.
Should the replacement bolt be tightened as hard as possible?
No. Start it by hand and tighten it securely without overtightening. Excessive force can damage aluminum threads. No torque specification should be assumed unless one is provided with the product instructions.
Does this repair fix every P144C or P04F0 code?
No. The replacement addresses a confirmed cracked or broken ejector fitting. Hoses, valves, restrictions, electrical faults, or other EVAP-system problems may also cause these codes.
Repair the Ejector Without Replacing the Complete Turbocharger
A broken plastic hose connection should not automatically require replacement of an otherwise functional turbocharger. The Elite Engineering Mazda 2.5T aluminum turbo ejector replacement provides a purpose-built repair using an aluminum fitting, new O-ring, and service-friendly Allen-head bolt.
Elite Engineering is not affiliated with or endorsed by Mazda Motor Corporation. Mazda vehicle and component names are used only to identify compatibility.
