What Is the Plastic Fitting on a Mazda 2.5T Turbo? Ejector, Vacuum Fitting & Hose Nipple Explained

If you broke the small plastic fitting attached to the turbocharger on your Mazda 2.5T and can't figure out what the part is called, you're not alone.

It's one of those parts that can be surprisingly difficult to identify. Depending on where you search, you may see it described as a turbo ejector, vacuum fitting, vacuum hose fitting, EVAP fitting, turbo nipple, vacuum nipple, hose barb, turbo hose connector, or simply the plastic fitting on the turbo.

No matter what you call it, the problem is the same: the factory component is made from plastic, and if it cracks or breaks, finding a replacement for only that small piece can be difficult.

That's why Elite Engineering developed a standalone aluminum replacement for the Mazda 2.5T turbo ejector fitting.

What Is the Plastic Fitting on the Mazda 2.5T Turbo Called?

The component is commonly referred to as the turbo ejector.

However, most owners don't know that name when the part first breaks. If you're looking at your turbocharger and wondering what that little plastic connection is, you may naturally search for things such as:

• Mazda 2.5T turbo vacuum fitting

• Mazda turbo nipple

• Mazda vacuum hose fitting

• Mazda turbo hose connector

• Mazda EVAP fitting

• Mazda turbo hose barb

• Broken plastic fitting on Mazda turbo

• CX-9 broken turbo fitting

• CX-5 turbo vacuum nipple

• Mazda 2.5 turbo ejector

All of these descriptions can lead back to the same small component.

The ejector connects to the vacuum/EVAP hose system and mounts directly to the turbocharger assembly.

Why Does the Mazda Turbo Ejector Fitting Break?

The original fitting is plastic and lives in a hot engine compartment directly on the turbocharger assembly.

Over time, repeated heating and cooling can make plastic components more brittle.

The fitting can also be accidentally damaged while:

• Removing or installing vacuum hoses

• Servicing components around the turbo

• Performing engine repairs

• Moving hoses out of the way

• Working around the turbocharger assembly

Sometimes it only takes a small bump or side load on an older plastic fitting for it to crack or snap.

The frustrating part is that the turbocharger itself may still be completely functional.

Do You Have to Replace the Entire Turbocharger?

This is where the repair can become unnecessarily expensive.

The small plastic ejector is associated with the turbocharger assembly, which can leave owners believing they need to purchase a complete replacement turbo simply because the plastic fitting broke.

That means a tiny damaged connection can potentially turn into a very expensive repair.

Elite Engineering developed an aluminum replacement specifically so the broken fitting can be replaced separately.

Instead of replacing an otherwise functional turbocharger, you can remove the damaged factory ejector and install the replacement fitting.

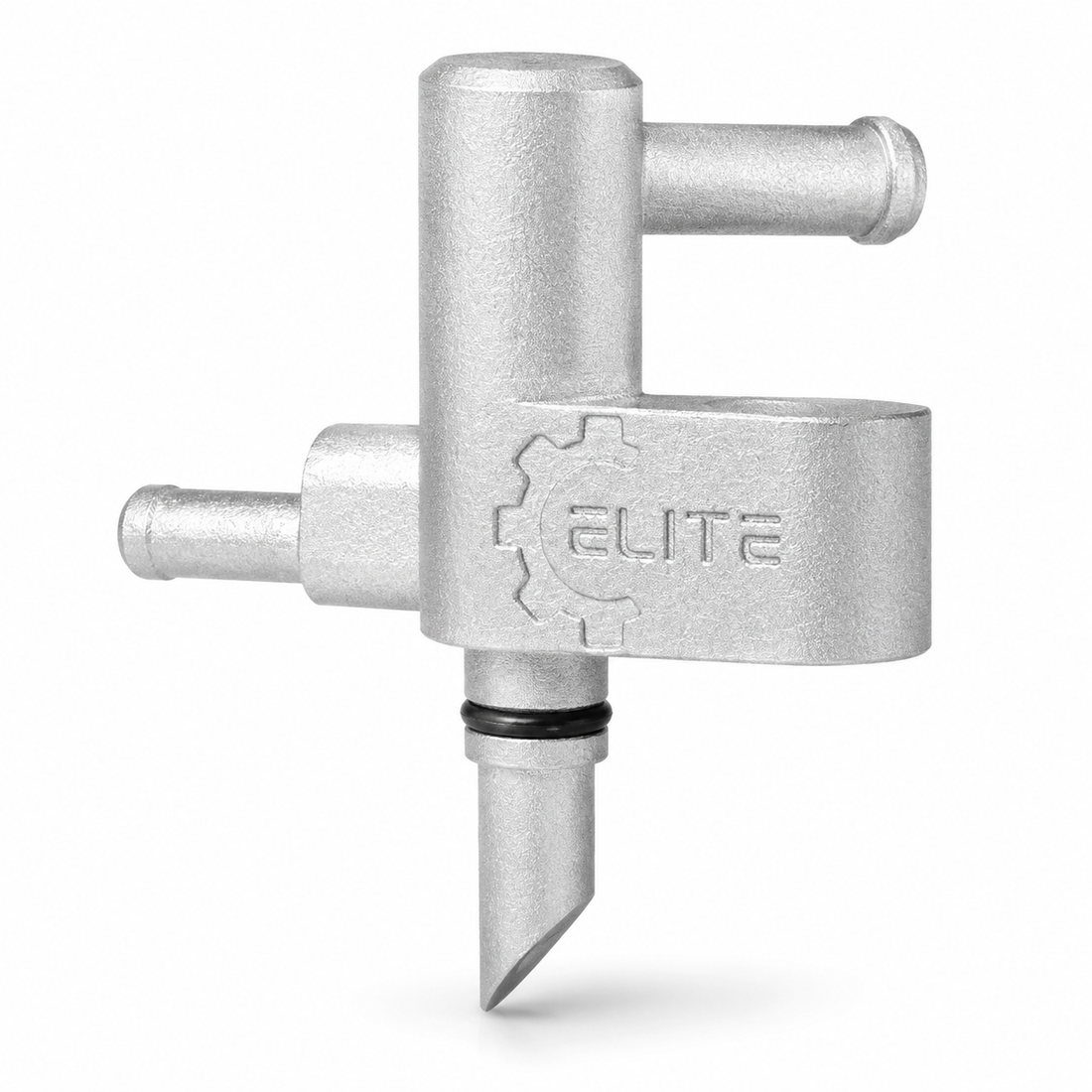

Elite Engineering Aluminum Mazda 2.5T Turbo Ejector

Our replacement ejector is manufactured from AlSi10Mg aluminum rather than plastic.

This provides a durable metal replacement for the original factory component while maintaining the necessary hose connections and sealing location.

Features include:

• Durable aluminum construction

• Direct replacement for the broken factory plastic ejector

• Factory-style hose connection locations

• O-ring sealing design

• Designed specifically for compatible Mazda 2.5T turbo applications

• New Allen-head mounting bolt included

• Allows repair of the fitting without replacing the complete turbocharger

The goal is simple: replace the part that actually broke.

Which Mazda Vehicles Use This Turbo Ejector?

This style of ejector is used on select Mazda vehicles equipped with the 2.5L SKYACTIV-G Turbo engine.

Common applications include:

Mazda CX-9 2.5T

2016–2023

Mazda6 2.5T

2018–2021

Mazda CX-5 2.5T

2019–2025

Always verify the original fitting and turbocharger configuration before ordering.

Mazda Turbocharger Reference Numbers

The replacement is designed for applications using turbocharger assemblies associated with reference numbers including:

• PYY1-13-70Z

• PY8V-13-700A

• PY8V-13-700B

These numbers identify the turbocharger assembly rather than the small ejector fitting itself.

If you're searching for one of these turbocharger numbers because the plastic fitting broke, you may not need to replace the entire turbo.

How Do You Remove the Original Mazda Turbo Ejector?

The original ejector is secured with a tamper-resistant factory bolt.

Unfortunately, part of the plastic ejector body makes the bolt difficult to access.

Since the old ejector is already being replaced, the easiest removal method is generally to carefully remove some of the surrounding plastic.

Step 1: Expose the Factory Bolt

Carefully cut or break away the corner of the original plastic ejector around the mounting bolt.

Remove only enough material to gain access to the bolt head.

Take care not to damage the aluminum turbocharger housing.

Step 2: Remove the Tamper-Resistant Bolt

Once the bolt is exposed, there are two common ways to remove it.

Method 1 – Cut a screwdriver slot

Carefully cut a straight slot across the head of the factory bolt. A flat-blade screwdriver can then be used to turn the bolt out.

Method 2 – Use locking pliers

Break away enough of the plastic ejector body to allow locking pliers or vise grips to securely grab the bolt head.

Turn the bolt counterclockwise until it can be removed.

Keep plastic and metal debris away from open vacuum hoses, ports, and turbocharger passages during removal.

A New Allen Bolt Is Included

You do not need to reuse the factory tamper-resistant bolt.

Every Elite Engineering aluminum ejector includes a new Allen-head mounting bolt for installation.

Once the original plastic ejector and factory bolt have been removed, install the aluminum replacement using the supplied bolt.

This also makes future removal significantly easier if the area ever needs to be serviced again.

Broke the Fitting While Removing a Hose?

If you found this article after searching something like:

“Mazda CX-9 broken plastic turbo fitting”

“Mazda CX-5 turbo vacuum nipple broke”

“What is the plastic fitting on my Mazda turbo?”

“Mazda 2.5T broken vacuum fitting”

“PYY1-13-70Z broken fitting”

“Mazda turbo ejector replacement”

You're likely looking at the part this repair was designed to replace.

It's a small component, but breaking it doesn't necessarily mean the entire turbocharger needs to be replaced.

Repair the Broken Fitting Instead of Replacing the Turbo

A broken plastic connection shouldn't automatically mean replacing an otherwise functional turbocharger.

The Elite Engineering Mazda 2.5T Aluminum Turbo Ejector Fitting provides a purpose-built metal replacement for the factory plastic component.

It's designed to restore the original hose connections while replacing the fragile plastic ejector with durable aluminum.
