Do You Really Need a New Turbo for a Broken Mazda 2.5T Plastic Fitting?
You’re working around the turbocharger on your Mazda 2.5T, remove a hose, bump a plastic connection and suddenly the small fitting attached to the turbo snaps.
Then comes the frustrating part.
You start looking for the broken piece and discover it may be associated with the complete turbocharger assembly.
So does a broken plastic fitting really mean you need to replace the entire turbo?
Not necessarily.
If the turbocharger itself is still operating correctly and the damaged component is the plastic ejector fitting, Elite Engineering offers a standalone aluminum replacement designed specifically to repair that connection.
What Is the Plastic Fitting on the Mazda Turbo?
The component is commonly called the turbo ejector, although that's probably not what most people search for when it first breaks.
You may also see it described as:
-
Turbo vacuum fitting
-
Vacuum hose fitting
-
EVAP fitting
-
Turbo nipple
-
Vacuum nipple
-
Hose nipple
-
Hose barb
-
Turbo hose connector
-
Plastic turbo fitting
-
Vacuum connector
If you searched for something like “broken plastic piece on Mazda turbo”, you’re definitely not the only one trying to figure out what this component is called.
The ejector mounts directly to the turbocharger housing and has several hose connections built into it.
Why Is a Small Broken Fitting Such a Big Problem?
The problem isn't necessarily the complexity of the part.
The problem is how the factory component is serviced.
When a small plastic fitting is incorporated into a much larger turbocharger assembly, finding that small component separately can be difficult.
That can lead to an unpleasant situation:
The turbocharger may still be perfectly usable, but one broken plastic connection makes it appear that the complete assembly needs replacement.
A turbocharger assembly is significantly more involved and expensive to replace than a small hose fitting.
That's the exact problem that led us to develop the Elite Engineering replacement.
A Broken Ejector Does Not Automatically Mean the Turbo Is Bad
There is an important distinction here.
If the turbocharger has an internal mechanical problem, oil leak, damaged compressor wheel, excessive shaft play, damaged housing, boost problem, or another actual turbocharger failure, those issues still need to be properly diagnosed.
Our replacement is not a repair for a failed turbocharger.
It is a repair for the broken plastic ejector fitting attached to an otherwise serviceable turbocharger.
If your only problem is the damaged fitting, replacing the fitting itself may allow you to avoid replacing a good turbocharger simply because of one broken plastic component.

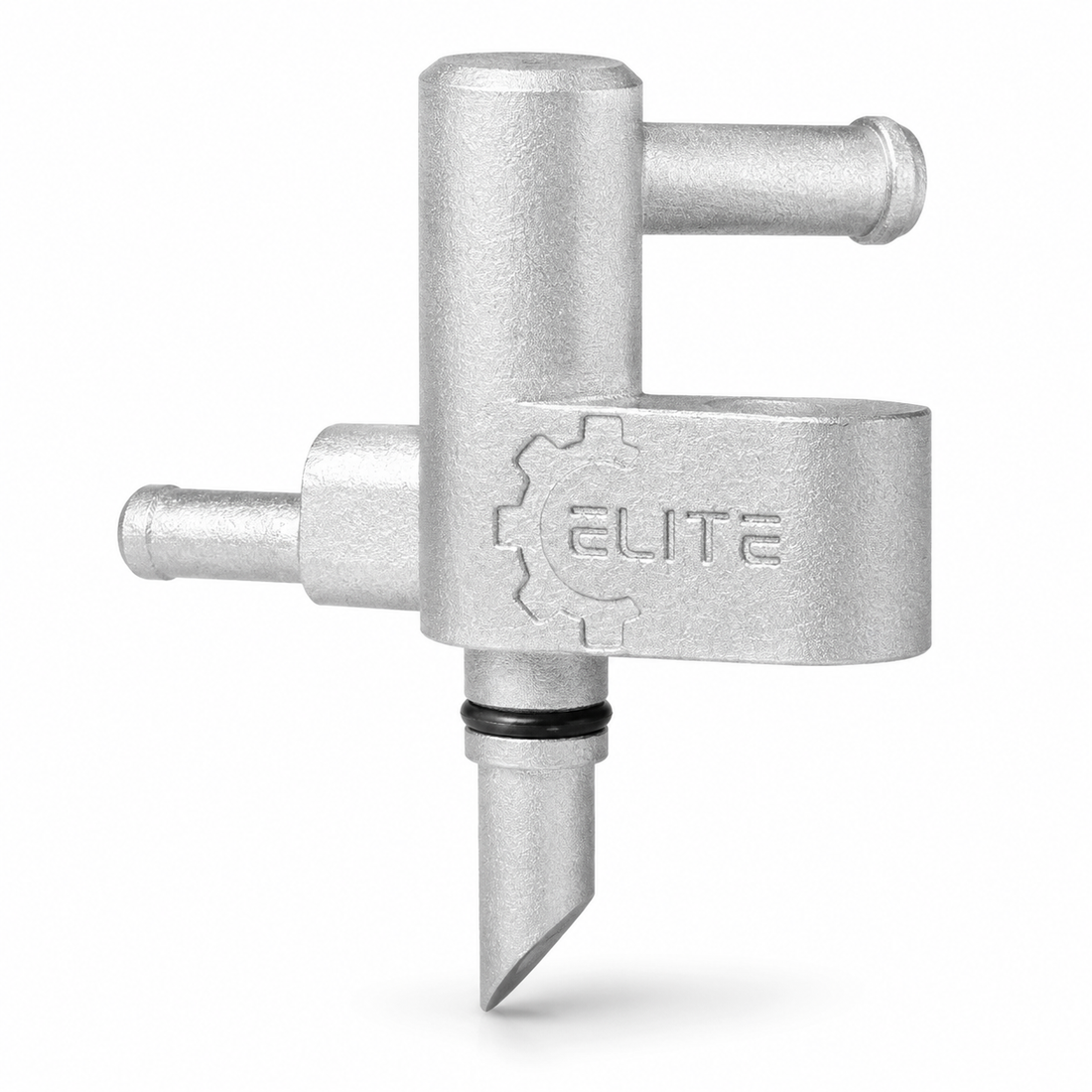

The Elite Engineering Aluminum Repair Solution
Elite Engineering developed a standalone replacement for the factory Mazda 2.5T turbo ejector.
Instead of plastic, our replacement is manufactured from AlSi10Mg aluminum.
The part is designed to retain the necessary:
-
Hose connections
-
Mounting location
-
O-ring sealing point
-
Original system configuration
It gives Mazda owners and repair shops another option when the plastic fitting breaks.
Key Features
ALUMINUM CONSTRUCTION
Replaces the factory plastic ejector with a durable metal component.
DIRECT REPAIR SOLUTION
Designed to replace the damaged fitting rather than the complete turbocharger assembly.
FACTORY-STYLE CONNECTIONS
Maintains the original hose connection locations.
O-RING SEALED
Designed to seal into the original turbocharger mounting location.
NEW ALLEN BOLT INCLUDED
The difficult factory tamper-resistant mounting bolt does not need to be reused.
Why Does the Factory Plastic Fitting Break?
The ejector lives in a demanding environment.
It's located directly on the turbocharger assembly in an engine compartment that experiences constant heating and cooling.
Plastic can become increasingly brittle as it ages.
A fitting may break while:
-
Removing a vacuum hose
-
Replacing nearby components
-
Moving hoses during service
-
Performing turbocharger work
-
Working around the engine
-
Accidentally placing sideways pressure on a hose nipple
Sometimes the fitting isn't obviously damaged until a hose is disturbed.
Then the nipple cracks or the body breaks.
What If the Hose Nipple Is the Part That Broke?
That's one of the common reasons someone ends up searching for this repair.
A hose attaches directly to the plastic nipple on the ejector.
If the nipple snaps from the ejector body, replacing only the hose won't solve the problem because there is no longer a proper connection for the hose.
The aluminum replacement provides a complete replacement ejector with the hose connection points incorporated into the part.
What Mazda Models Use This Style Ejector?
The Elite Engineering replacement is designed for select Mazda vehicles equipped with the 2.5L SKYACTIV-G Turbo engine.
Common applications include:
Mazda CX-9 2.5T
2016–2023
Mazda6 2.5T
2018–2021
Mazda CX-5 2.5T
2019–2025
Fitment should always be verified by comparing your original turbocharger and ejector configuration before ordering.
Turbocharger Reference Numbers
Applications using this style fitting may be associated with turbocharger assembly/reference numbers including:
-
PYY1-13-70Z
-
PY8V-13-700A
-
PY8V-13-700B
These are reference numbers for the turbocharger assembly, not individual Mazda part numbers for the ejector itself.
That distinction is important.
If you've been searching one of those turbocharger numbers because your small plastic fitting broke, the Elite Engineering repair may be the standalone component you're actually looking for.
How Is the Original Mazda Ejector Removed?
The factory ejector is secured to the turbocharger using a tamper-resistant mounting bolt.
The plastic body partially surrounds the bolt, making normal removal difficult.
Since the original plastic ejector is being replaced, part of the old ejector can be sacrificed to access the bolt.
Step 1 – Cut or Break Away the Plastic
Carefully cut or break away the rear corner of the old plastic ejector to expose the factory mounting bolt.
Only remove the material necessary to gain access.
Be careful not to damage the aluminum turbocharger housing.
Step 2 – Remove the Tamper-Resistant Bolt
Once exposed, there are two common removal methods.
A slot can be carefully cut across the factory bolt head so it can be turned using a flat-blade screwdriver.
Alternatively, enough plastic can be removed to grip the bolt with locking pliers or vise grips and turn it out.
Step 3 – Remove the Original Ejector
After the bolt has been removed, carefully pull the factory ejector from the turbocharger housing.
Make sure the old O-ring and any broken plastic pieces are completely removed.
Step 4 – Install the Aluminum Replacement
Install the Elite Engineering aluminum ejector into the original location.
The replacement includes a new Allen-head bolt, eliminating the need to reinstall the original tamper-resistant hardware.
Don't Let Debris Enter the Turbo or Vacuum System
Any time the original plastic component is being cut or broken, care should be taken to prevent debris from entering:
-
Vacuum hoses
-
EVAP hoses
-
Open ports
-
Turbocharger passages
-
Intake plumbing
Cover exposed openings before cutting and thoroughly clean the repair area before installing the replacement ejector.
How Do You Know Whether You Need the Fitting or an Entire Turbo?
The answer depends on what's actually wrong with the vehicle.
A standalone ejector repair may make sense when:
-
The plastic ejector body is cracked
-
A hose nipple has snapped off
-
The fitting was damaged during service
-
The ejector no longer seals correctly
-
The turbocharger itself is otherwise operating normally
Additional diagnosis is needed if you have:
-
Excessive turbocharger shaft play
-
Compressor or turbine wheel damage
-
Major turbo oil leakage
-
Turbocharger housing damage
-
Persistent boost-control problems
-
Internal turbocharger noise
-
Other mechanical turbocharger failure
The purpose of the Elite Engineering ejector is simple:
Don't replace a functioning turbocharger just because its plastic fitting broke.
Why We Made an Aluminum Version
When we looked at this failure, replacing the original piece with another fragile solution didn't make much sense.
Our replacement is manufactured from AlSi10Mg aluminum, providing a metal alternative while retaining the required shape, hose connections, and mounting configuration.
It also uses an O-ring at the turbocharger connection and includes new mounting hardware.
The finished part provides a straightforward solution to an unusually expensive problem.
Searching for the Broken Mazda Turbo Fitting?
If you found this page after searching any of the following, this may be the component you're looking for:
Mazda CX-9 broken turbo fitting
Mazda CX-5 plastic fitting on turbo
Mazda 2.5T turbo nipple broke
Mazda turbo vacuum fitting
Mazda EVAP fitting on turbo
Mazda turbo hose connector
Mazda 2.5 turbo ejector
Mazda vacuum nipple broken
PYY1-13-70Z plastic fitting
PY8V-13-700A ejector
PY8V-13-700B broken fitting
Repair the Broken Component Instead of Automatically Replacing the Turbo
Breaking a small plastic component on your Mazda 2.5T can be frustrating especially when your search for a replacement starts leading toward complete turbocharger assemblies.
If the turbocharger itself is still serviceable and the problem is the damaged ejector fitting, there is another option.
The Elite Engineering Mazda 2.5T Aluminum Turbo Ejector Replacement allows the damaged factory plastic fitting to be repaired separately using a purpose-built aluminum replacement.
