Mazda 2.5T Turbo Ejector Fitting – Aluminum Reliability Upgrade & Repair

Upgrade the factory plastic turbo ejector fitting before it breaks or repair it after it has.

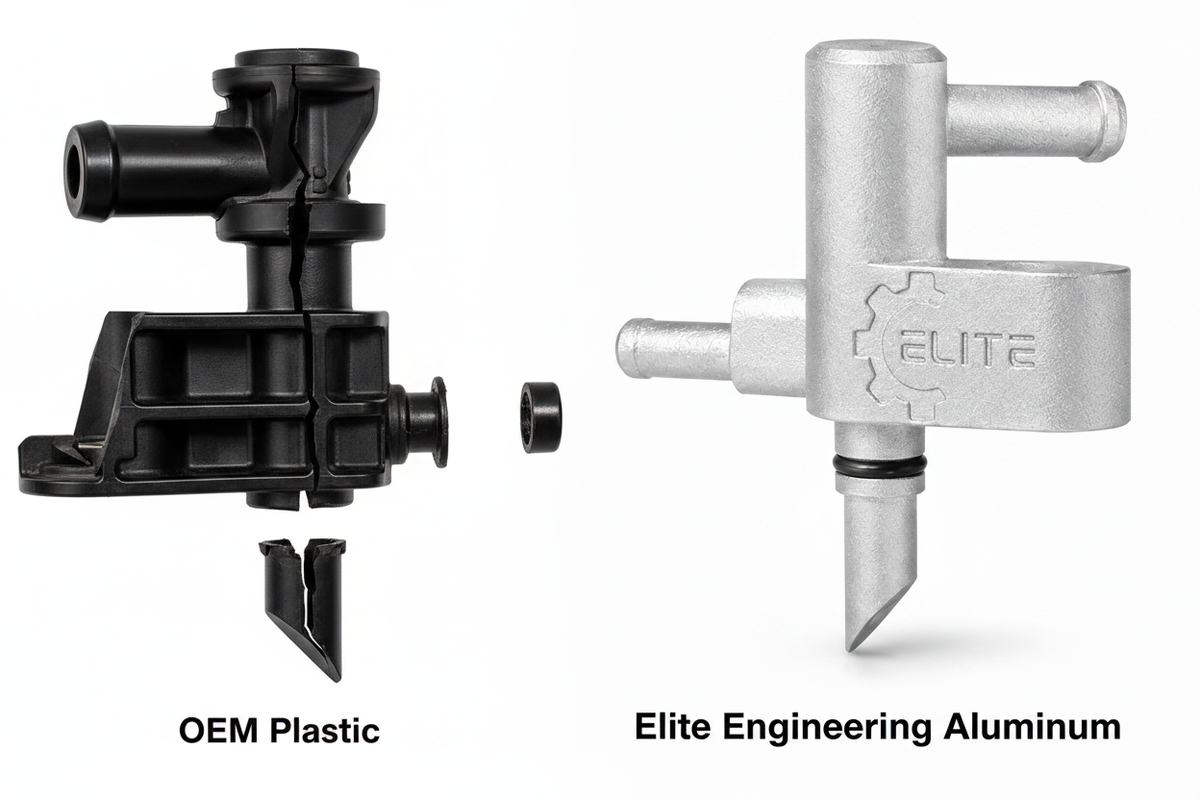

The factory Mazda 2.5T turbo ejector uses a plastic hose connection that can become brittle after years of engine-bay heat. Once weakened, the fitting may crack or snap when the hose is removed, repositioned, or accidentally bumped during service.

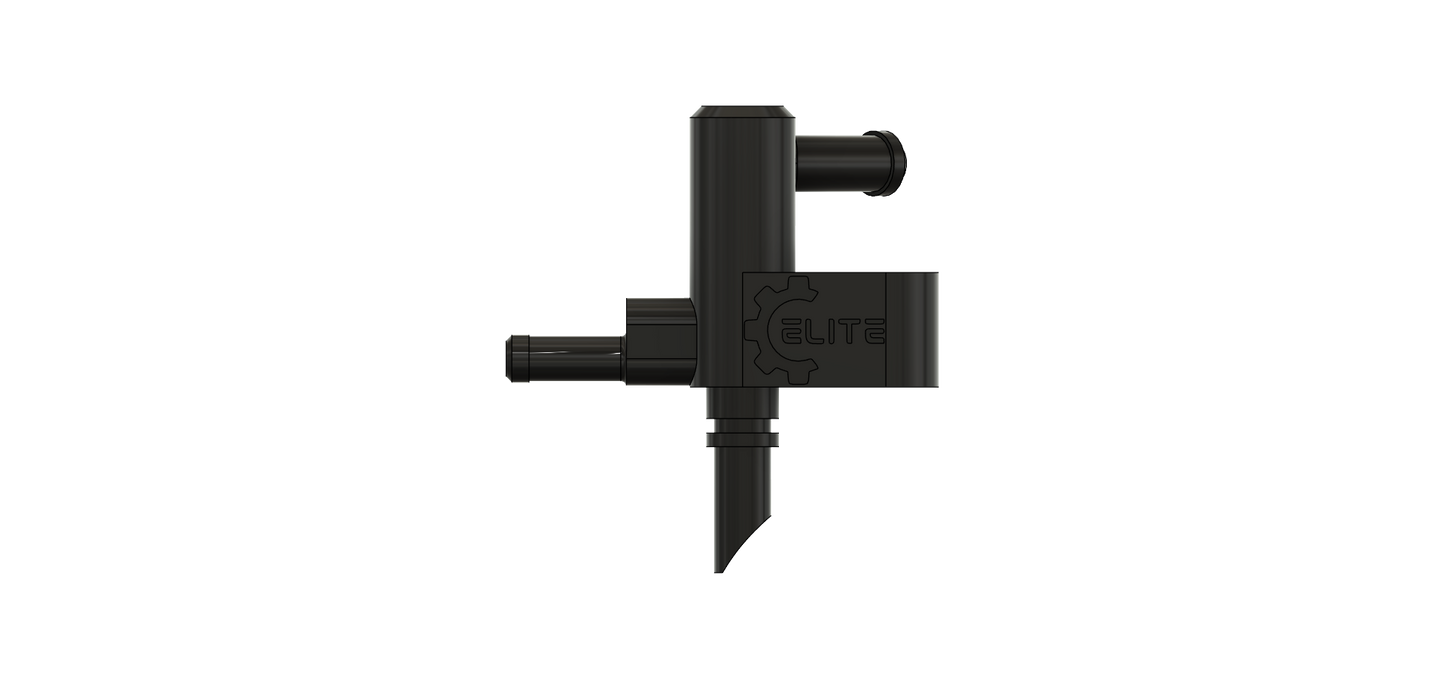

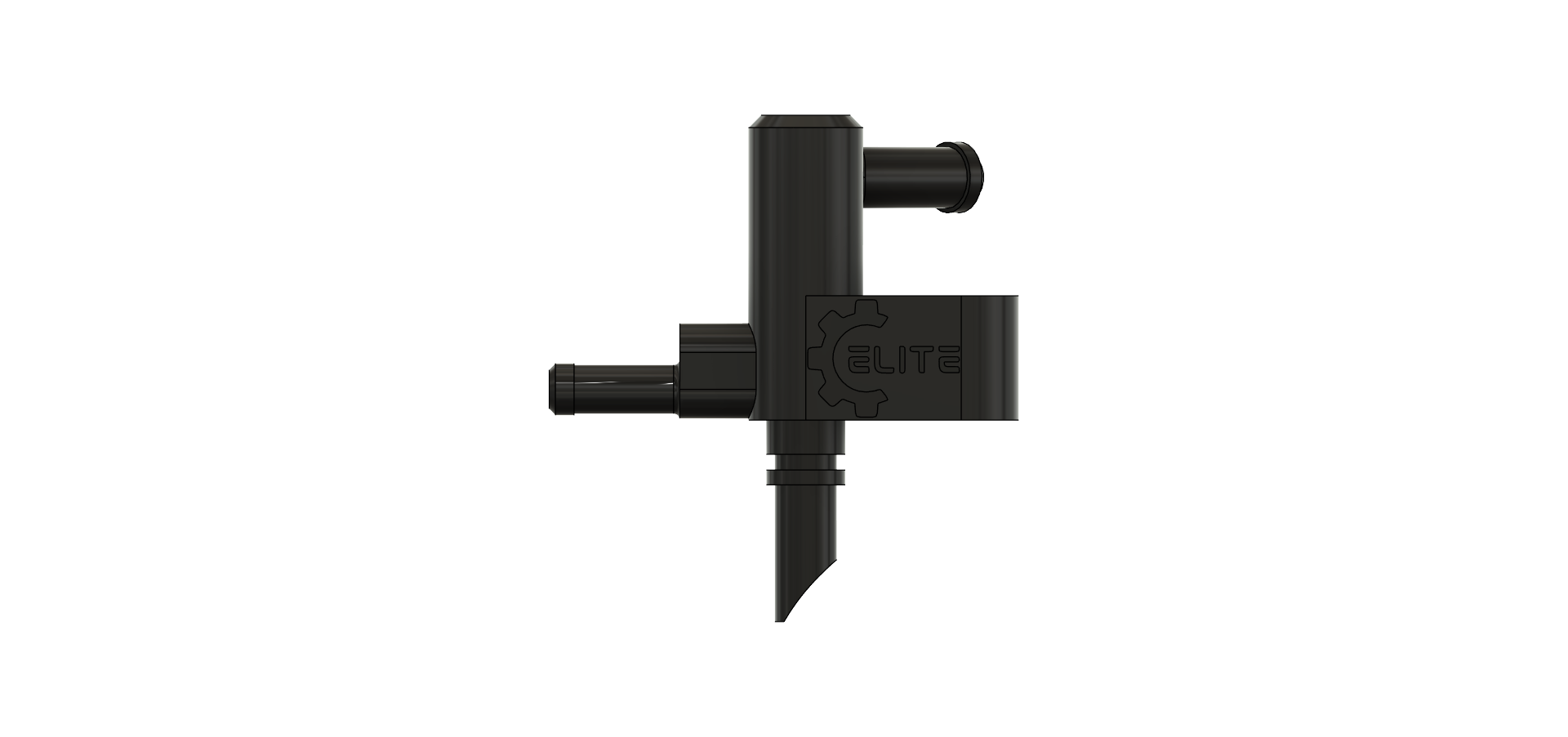

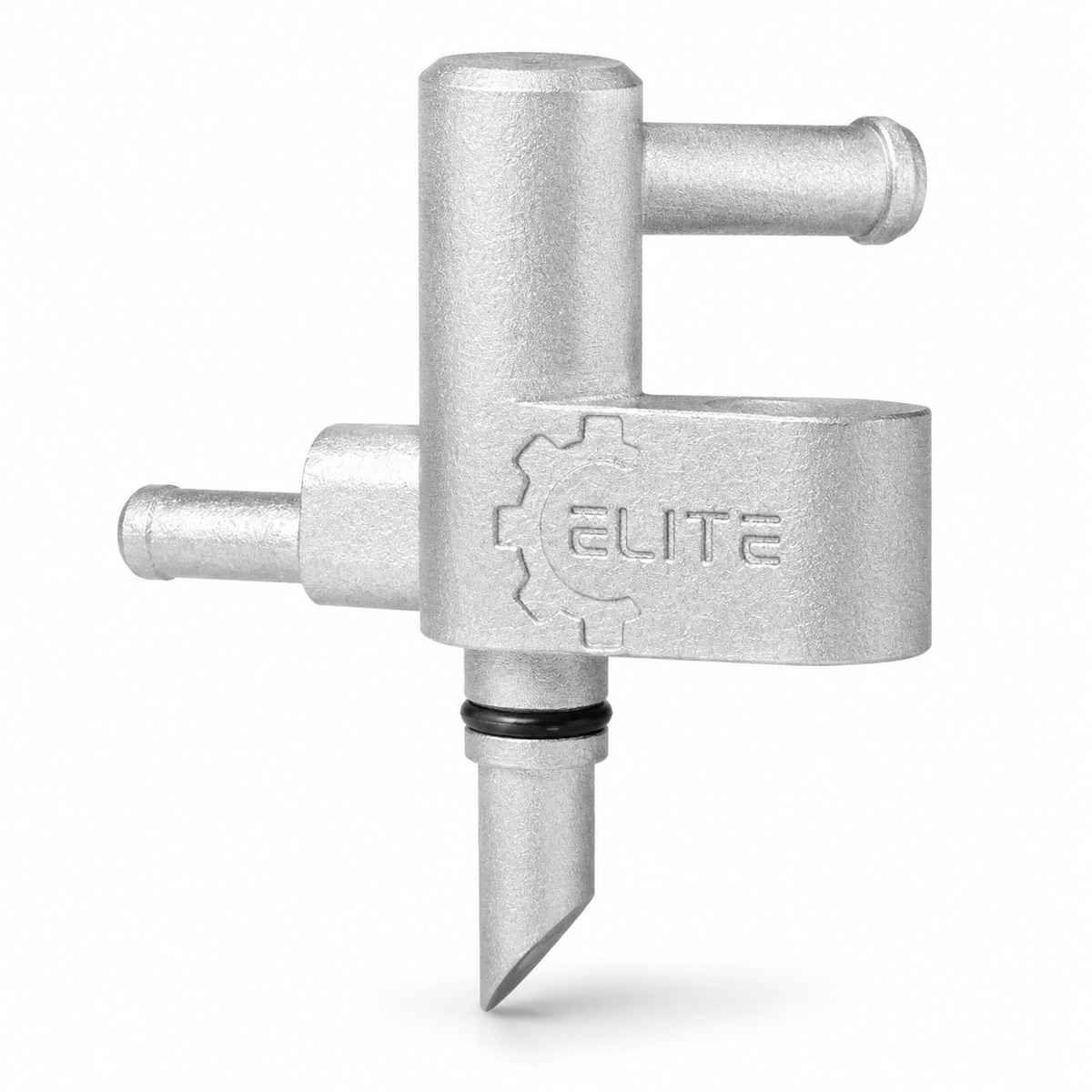

The Elite Engineering aluminum replacement upgrades this failure-prone plastic connection without requiring replacement of the complete turbocharger assembly.

Preventative Upgrade and Repair Solution

This aluminum ejector fitting serves two purposes:

• Replace an already cracked or broken factory fitting

• Upgrade the original plastic fitting before heat and age cause it to fail

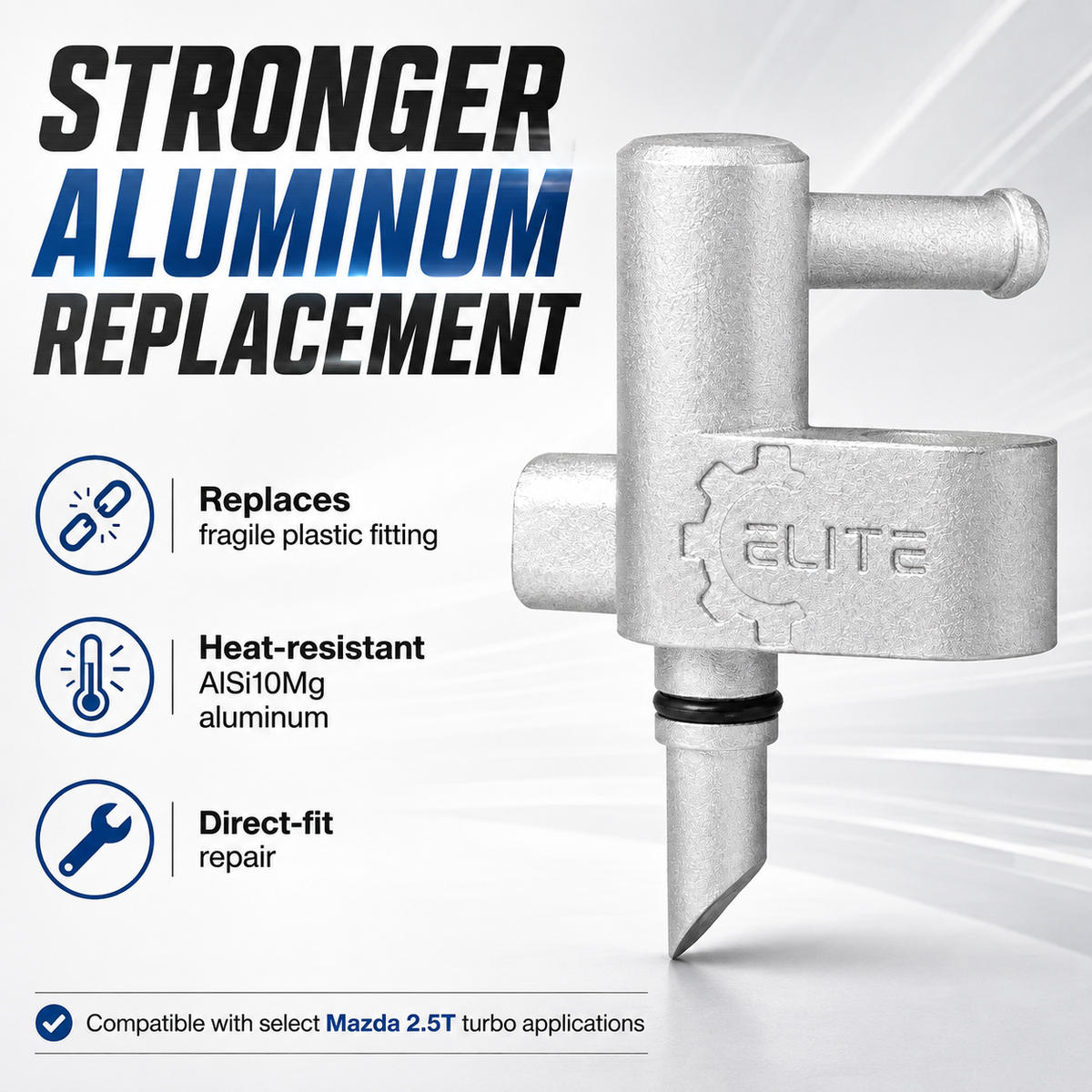

It is a reliability and durability upgrade not a performance modification. It restores the original system while replacing the vulnerable plastic component with AlSi10Mg aluminum.

Why Upgrade the Factory Fitting?

• Stronger aluminum construction

• Greater resistance to engine-bay heat and aging

• Reduces the risk of accidental breakage during nearby repairs

• Retains the factory-style hose connections

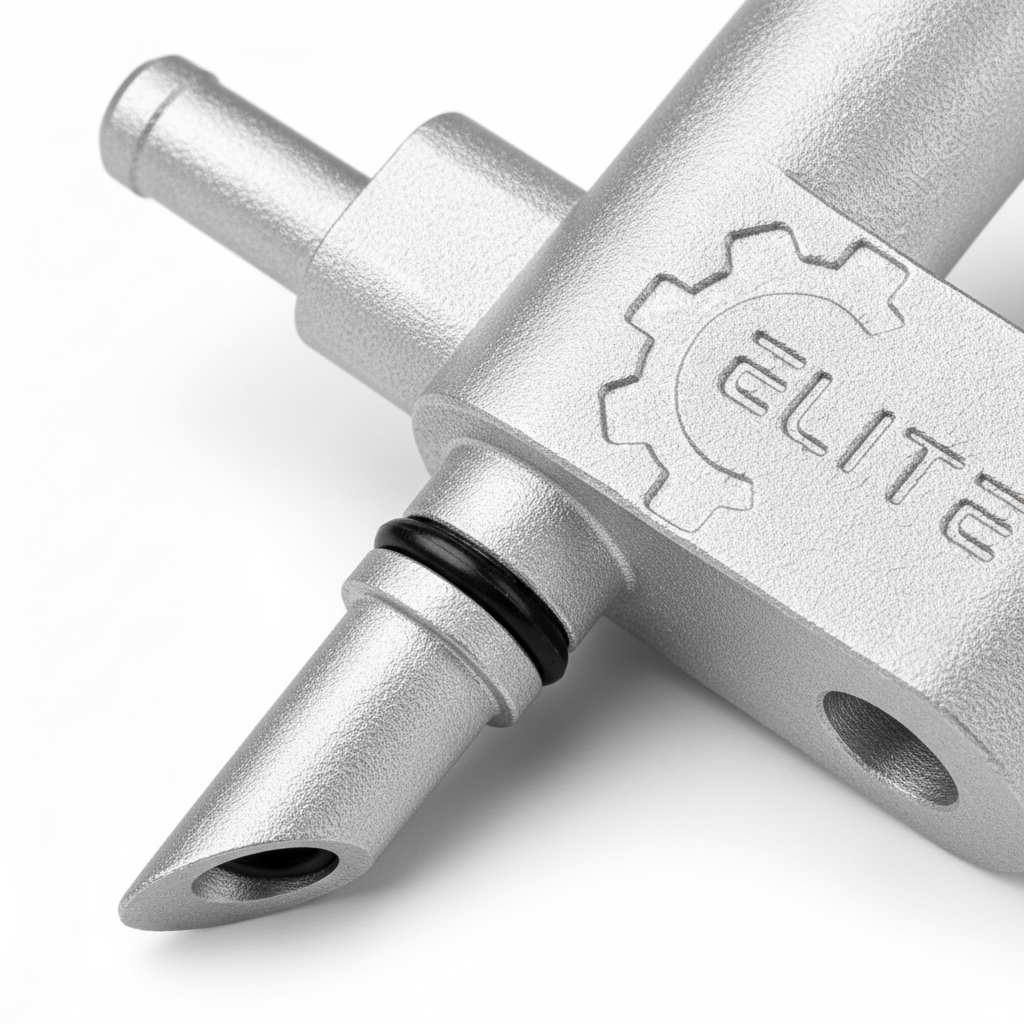

• Uses the original O-ring sealing location

• Avoids replacing the complete turbocharger because of one broken fitting

• Includes a new, easily removable mounting bolt

Is This the Part You Need?

Owners and technicians may describe this component as a:

• Turbo ejector

• Turbo vacuum fitting

• EVAP fitting

• Vacuum hose fitting

• Turbo hose connector

• Plastic turbo fitting

• Hose nipple or barb

• Broken plastic fitting on the turbocharger

All of these descriptions may refer to the same failure-prone connection.

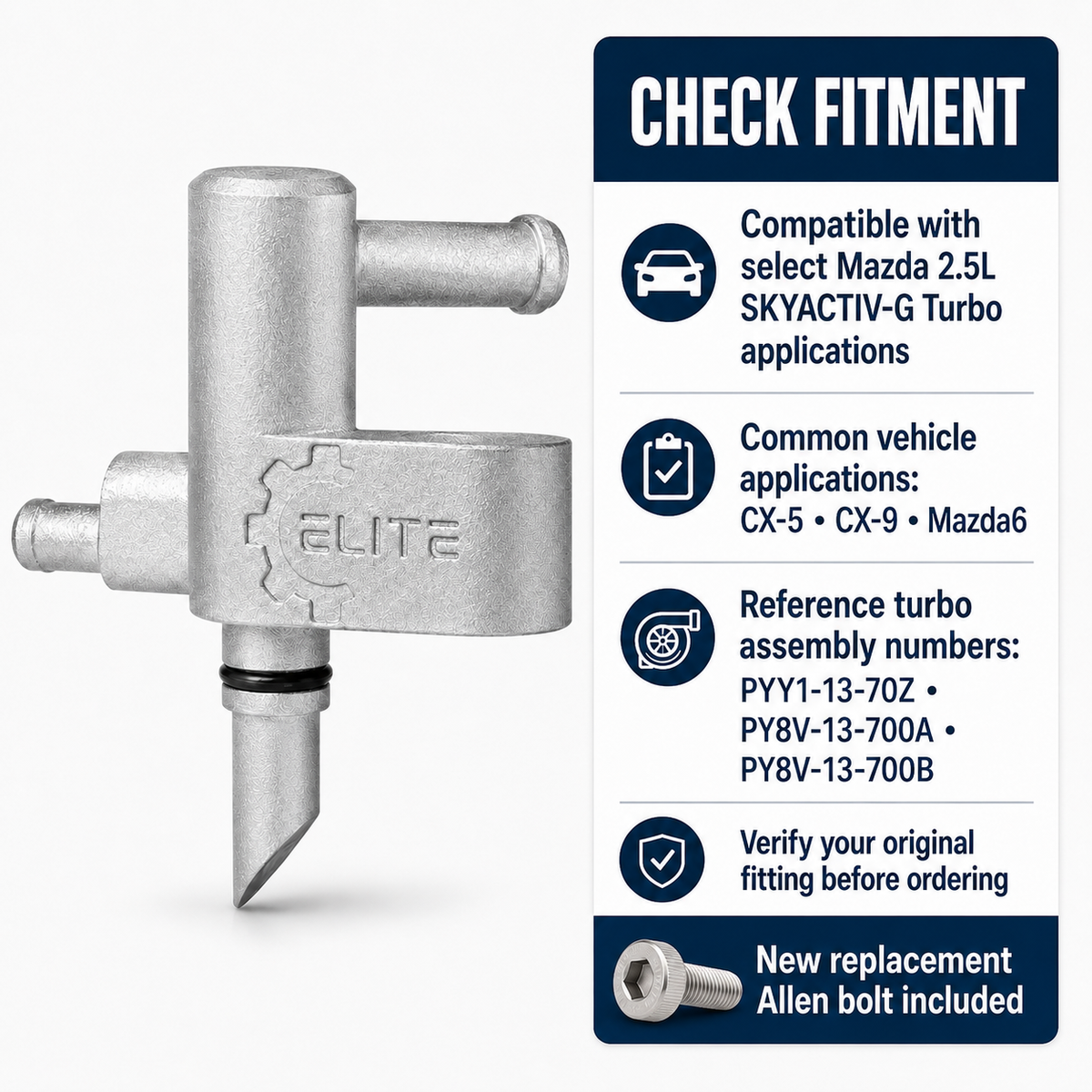

Compatible Applications

Designed for select Mazda vehicles equipped with the 2.5L SKYACTIV-G Turbo engine, including:

• Mazda CX-5 2.5 Turbo

• Mazda CX-9 2.5 Turbo

• Mazda6 2.5 Turbo

Designed for applications using turbocharger assembly or reference numbers:

• PYY1-13-70Z

• PY8V-13-700A

• PY8V-13-700B

Always compare your original fitting and turbocharger configuration before ordering.

Installation Information

The factory ejector is secured with a tamper-resistant bolt that can be difficult to access while the original plastic part remains intact.

Carefully remove or cut away the corner of the original plastic ejector to expose the bolt head. Once accessible, cut a screwdriver slot into the bolt head or remove enough surrounding plastic to grip the bolt with locking pliers.

Take care not to damage the turbocharger housing. Keep plastic fragments and cutting debris out of all open hoses and passages.

A new replacement mounting bolt is included, so the original tamper-resistant bolt does not need to be reused.

Want to learn about other ways to improve 2.5T durability? Read our guide to 5 Smart Reliability Upgrades for the Mazda 2.5T Turbo Engine.

Replace the brittle factory plastic connection with a durable aluminum upgrade before or after it breaks.
