Mazda 2.5T Broken Turbo Ejector Fitting: Purge During Boost Codes and Repair

A small broken plastic fitting on the turbocharger can create a surprisingly expensive problem on certain Mazda 2.5L turbocharged vehicles.

This fitting is part of the turbocharger’s EVAP ejector system. It may be called a turbo ejector, turbo vacuum fitting, EVAP fitting, turbo hose nipple, hose barb, or simply the plastic fitting on the turbo.

Whatever name is used, the problem is usually the same: the factory plastic connection becomes brittle and snaps when it is bumped or when someone attempts to remove the attached hose.

Elite Engineering developed an aluminum replacement that allows the damaged fitting to be repaired without replacing an otherwise functional turbocharger assembly.

What Is the Mazda 2.5T Turbo Ejector?

The ejector is part of the evaporative-emissions, or EVAP, purge system.

During normal operation without boost, engine vacuum can help pull fuel vapors from the EVAP system into the engine. However, when a turbocharged engine is under boost, the intake manifold becomes pressurized instead of producing vacuum.

Boosted EVAP systems use an ejector, which works as a venturi device, to create the vacuum needed to continue purging fuel vapors while the engine is under boost. Manufacturer OBD documentation describes the ejector as the device used to generate purge vacuum during boosted operation.

The ejector itself performs an important function, but the factory Mazda assembly includes a small plastic hose connection that can be easily damaged.

Why Does the Factory Plastic Fitting Break?

The factory fitting is exposed to years of engine-bay heat and repeated heating and cooling cycles. As the plastic ages, it can become hard and brittle.

The fitting commonly breaks when:

• It is accidentally bumped while someone is working near the turbocharger

• The attached hose is twisted during removal

• The hose is pulled sideways against the plastic nipple

• Nearby engine or turbocharger service is being performed

• The aged plastic can no longer withstand normal handling

The fitting may look completely normal until it is disturbed. Once the plastic has become brittle, even light pressure can cause the hose nipple to crack or snap off.

In many cases, there was nothing wrong with the turbocharger itself before the fitting was damaged.

What Are the Symptoms of a Broken Turbo Ejector Fitting?

The most obvious symptom is a visibly broken plastic nipple or a hose that is no longer connected to the turbo ejector.

Other possible signs include:

• Check engine light

• EVAP purge-system trouble code

• A scan-tool description mentioning purge performance during boost

• Loose or disconnected hose near the turbocharger

• Visible crack around the plastic hose connection

• Fuel-vapor odor in some situations

• An emissions monitor that will not complete

• Failure to pass an emissions inspection

The vehicle may continue to run normally because the failure primarily affects the EVAP purge system. A lack of noticeable drivability symptoms does not mean the broken connection should be ignored.

What Check Engine Light Code Can It Cause?

A broken, leaking, restricted, or disconnected ejector connection may interfere with the EVAP system’s ability to purge correctly while the engine is under boost.

Related diagnostic trouble codes may include:

P144C — EVAP System Purge Check Valve Performance

This code is associated with the EVAP purge-system check performed during boosted operation. Some scan tools may use simplified wording such as:

• Purge performance during boost

• EVAP purge during boost

• Purge check valve performance

• EVAP purge flow performance under boost

P04F0 — EVAP System High Load Purge Line “A” Performance

P04F0 is another code associated with the high-load or boosted EVAP purge path. Manufacturer OBD documentation notes that P04F0 replaces P144C in some applications and that the monitor runs during boosted operation.

A service bulletin for boosted applications also connects P144C and P04F0 with loose or partially connected EVAP lines, including connections at the ejector.

The Code Does Not Automatically Prove the Fitting Is Broken

P144C or P04F0 can also be caused by:

• Damaged or disconnected EVAP hoses

• Restricted ejector passages

• Incorrect hose routing

• Failed purge check valves

• A malfunctioning purge valve

• Other leaks or restrictions in the EVAP system

The fitting should be visually inspected before ordering a replacement. A broken or missing plastic nipple is usually easy to identify once the turbocharger area is inspected.

Why Can Such a Small Part Become an Expensive Repair?

The plastic fitting is attached to a much larger turbocharger component. When the fitting is not available as an individual service part, the repair options can become limited even though the turbocharger itself may still be operating correctly.

Mazda lists turbocharger assembly number PYY1-13-70Z, which supersedes PY8V-13-700A and PY8V-13-700B, for the affected CX-5, CX-9 and Mazda6 applications.

Replacing a complete turbocharger because one plastic hose nipple was accidentally broken can add significant parts cost and labor to the repair.

That is the problem our aluminum replacement was designed to solve.

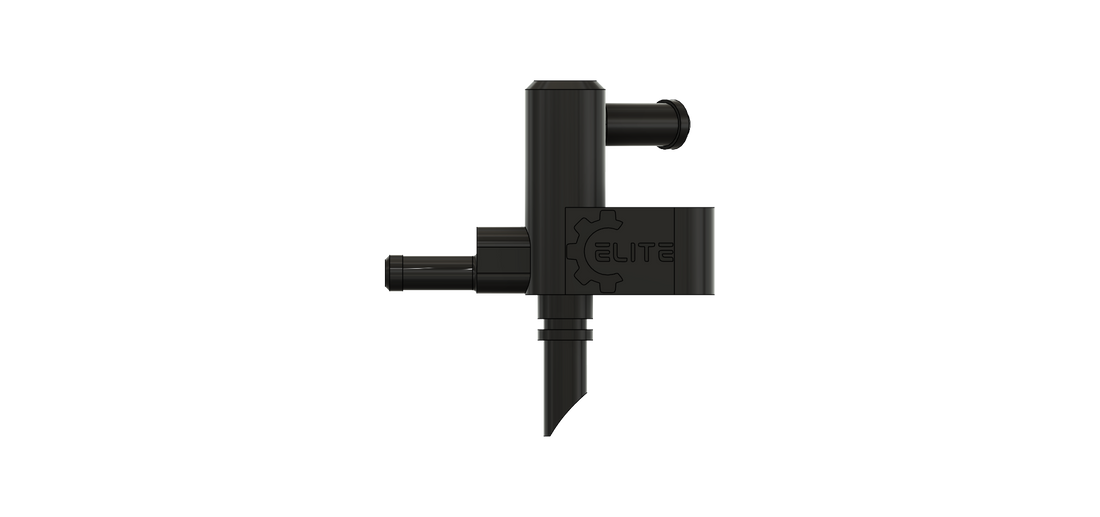

The Elite Engineering Aluminum Ejector Replacement

Elite Engineering developed an aluminum replacement for the failure-prone plastic Mazda turbo ejector fitting.

Instead of replacing the complete turbocharger assembly, the damaged fitting can be removed and replaced with a purpose-built aluminum component.

Product Features

• Aluminum construction

• Replaces the original plastic ejector fitting

• Designed for the factory mounting location

• Connects to the original hose arrangement

• Glass-bead blasted matte finish

• Stronger than the original plastic hose connection

• Allows repair of the damaged component separately

• Clean, professional appearance

This is an aluminum component with a glass-bead blasted finish. It is not advertised as billet aluminum or as an anodized part.

Mazda Vehicle Fitment

The Elite Engineering aluminum turbo ejector replacement is designed for the following Mazda vehicles equipped with the 2.5L Skyactiv-G turbo engine:

• 2016–2023 Mazda CX-9 2.5 Turbo

• 2019–2025 Mazda CX-5 2.5 Turbo

• 2018–2021 Mazda6 2.5 Turbo

It is designed for applications using the following turbocharger assembly numbers:

• PYY1-13-70Z

• PY8V-13-700A

• PY8V-13-700B

Mazda’s parts catalog identifies PYY1-13-70Z as the replacement for the two PY8V turbocharger numbers and lists it for the CX-5, CX-9 and Mazda6. The catalog specifically lists 2019–2025 CX-5 and 2018–2021 Mazda6 applications.

This part does not fit naturally aspirated Mazda 2.5L engines.

Fitment should always be confirmed by comparing the original fitting, hose connection and mounting location with the product photos.

How to Confirm That You Need This Part

Before purchasing, inspect the turbocharger area and confirm the following:

1. Your Mazda has the turbocharged 2.5L engine.

2. The damaged component matches the fitting shown in the product photos.

3. The plastic hose nipple is cracked, broken or missing.

4. The attached hose and connector have not also been damaged.

5. The mounting area on the turbocharger is still intact.

A trouble code by itself is not enough to confirm the repair. This product is intended to replace a visibly damaged ejector fitting, not every possible cause of P144C or P04F0.

Installation Considerations

Professional installation is recommended.

The broken factory fitting must be removed carefully, and any remaining plastic pieces should be cleared from the installation area. The hose, seal, mounting surface and surrounding components should also be inspected before the replacement is installed.

After installation:

• Make sure the hose is fully seated

• Confirm all connections are secure

• Check for leaks

• Clear the stored diagnostic trouble code

• Complete the appropriate drive cycle

• Verify that the EVAP monitor completes without returning the fault

Installation requirements and component accessibility can vary between the CX-5, CX-9 and Mazda6.

Frequently Asked Questions

What is this Mazda turbo part called?

Mazda and service information may refer to it as an ejector. Owners and technicians may call it a turbo vacuum fitting, EVAP fitting, turbo hose fitting, hose nipple, hose barb or plastic fitting on the turbocharger.

Can a broken ejector cause a purge-during-boost code?

It can. A broken or disconnected ejector fitting can prevent the EVAP system from producing or detecting the expected purge flow during boosted operation. P144C and P04F0 are the most closely related purge-performance codes, but proper diagnosis is still required.

Does this part fix every P144C or P04F0 code?

No. Those codes can also be caused by hoses, check valves, purge valves, restrictions or other EVAP-system faults. This replacement is intended for vehicles with a confirmed broken ejector fitting.

Is this a complete turbocharger?

No. This is a replacement for the damaged ejector fitting only.

Is the replacement made from plastic?

No. The Elite Engineering replacement is manufactured from aluminum.

Is it billet aluminum?

No billet claim is being made. It is described as an aluminum replacement component.

What finish does it have?

The aluminum has a glass-bead blasted matte finish.

Does it fit a non-turbo Mazda 2.5L engine?

No. It is designed for the listed Mazda 2.5L turbocharged applications only.

Repair the Broken Fitting Without Replacing the Entire Turbo

A broken plastic hose nipple should not automatically mean replacing an otherwise functional turbocharger.

The Elite Engineering Mazda 2.5T aluminum ejector replacement was developed to provide a stronger and more practical repair for this specific failure.

Shop the Mazda 2.5T Aluminum Turbo Ejector Replacement

Need help confirming fitment? Send us your vehicle’s year, model, engine and a clear photo of the broken fitting before ordering.

Elite Engineering is not affiliated with or endorsed by Mazda Motor Corporation. Mazda vehicle and component names are used only to identify compatibility.
