Broken Mazda 2.5T Turbo Ejector Fitting? There’s a Better Repair Solution

If you’ve broken the small plastic fitting attached to the turbocharger on a Mazda 2.5L turbo engine, you’ve probably already discovered the frustrating part:

What is this thing even called?

Depending on where you look, people may describe it as a:

• Turbo ejector
• Turbo vacuum fitting
• Vacuum hose fitting
• EVAP fitting
• Turbo hose nipple
• Vacuum nipple
• Hose barb
• Plastic turbo fitting
• Turbo hose connector

Whatever you call it, the problem is the same: the factory component is plastic, and once it breaks, finding a replacement for just that fitting can be extremely difficult.

The Plastic Fitting Is Part of the Turbo Assembly

On many Mazda 2.5T applications, this small ejector fitting is associated with the complete turbocharger assembly rather than being offered as a convenient standalone service part.

That can leave Mazda owners and repair shops facing a frustrating situation:

A small plastic fitting breaks, but the apparent replacement is an entire turbocharger assembly.

That’s exactly the problem we wanted to solve.

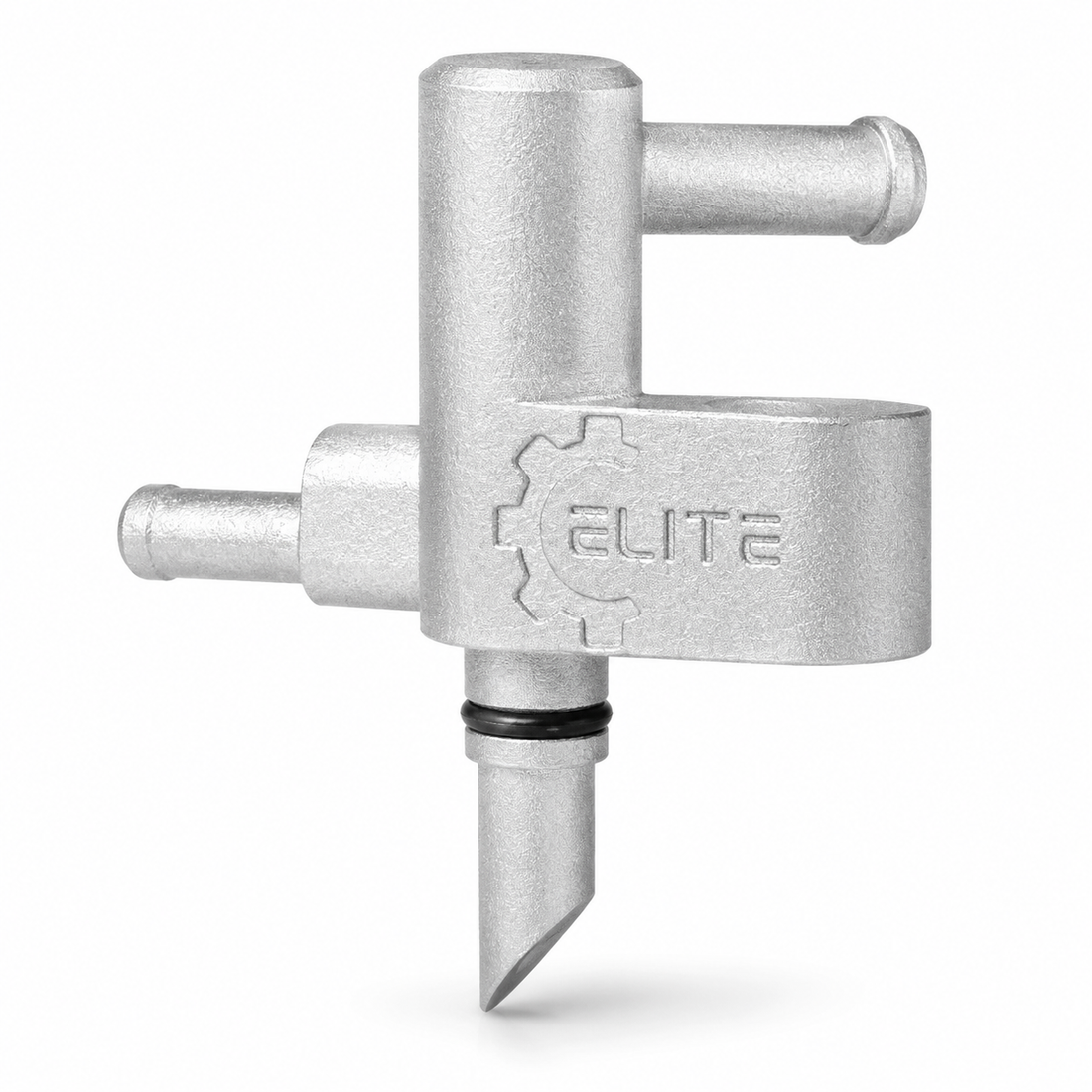

The Elite Engineering Aluminum Replacement

Elite Engineering developed a standalone aluminum replacement turbo ejector fitting for compatible Mazda 2.5T applications.

Instead of replacing a good turbocharger because one plastic connection broke, the damaged fitting can be removed and replaced with our aluminum version.

The replacement is manufactured from AlSi10Mg aluminum, providing a much stronger and more heat-resistant alternative to the original plastic component.

Key advantages

Durable aluminum construction
Replaces the failure-prone plastic fitting with a metal component.

Direct repair solution
Designed specifically to replace the damaged ejector fitting rather than the complete turbocharger.

Factory-style hose connections
Maintains the original hose connection locations and sealing arrangement.

New mounting bolt included
You do not need to reuse the original tamper-resistant mounting bolt.

What Mazda Vehicles Use This Style Fitting?

Our ejector replacement is designed for select Mazda vehicles equipped with the 2.5L SKYACTIV-G Turbo engine, including compatible:

Mazda CX-5 2.5T
Mazda CX-9 2.5T
Mazda6 2.5T

The fitting is associated with turbocharger assembly/reference numbers including:

PYY1-13-70Z
PY8V-13-700A
PY8V-13-700B

Always compare your original fitting and turbocharger configuration before ordering.

How Do You Remove the Original Ejector?

The factory ejector is held in place by a tamper-resistant bolt, and unfortunately the plastic body of the original ejector partially prevents easy access to it.

The easiest removal method usually requires sacrificing the already damaged plastic ejector.

Removal overview

First, carefully cut or break away the corner of the original plastic ejector surrounding the mounting bolt.

Once enough plastic has been removed to expose the bolt head, there are two common removal methods.

You can carefully cut a straight slot into the head of the factory bolt and remove it using a flat-blade screwdriver.

Alternatively, break away enough of the plastic body to allow a pair of locking pliers or vise grips to securely grab the bolt head and turn it out.

Be careful during removal to avoid damaging the aluminum turbocharger housing and prevent plastic or metal debris from entering any open hoses or passages.

A New Allen Bolt Is Included

Once the original ejector and tamper-resistant bolt are removed, the Elite Engineering aluminum ejector installs using the new Allen-head mounting bolt included with the replacement part.

That means you don't have to reinstall the difficult factory tamper-resistant hardware.

Broke the Plastic Fitting While Working on Your Mazda?

This failure can happen while servicing the turbo area, removing hoses, or simply working around an older plastic fitting that has become brittle from years of engine-bay heat.

If you're searching for:

Mazda broken turbo nipple
Mazda 2.5T vacuum fitting
CX-9 broken turbo fitting
CX-5 turbo ejector
Mazda turbo hose fitting
Mazda EVAP ejector fitting
PYY1-13-70Z broken fitting

you've likely found the part you're looking for.

Repair the Fitting Instead of Replacing the Turbo

A broken plastic connection shouldn't necessarily mean replacing an otherwise functional turbocharger.

The Elite Engineering Mazda 2.5T Aluminum Turbo Ejector Fitting provides a purpose-built repair solution using a durable aluminum component and included replacement hardware.
