Why Opening a Car Door Can Ruin a Parasitic Draw Test

A parasitic-draw test can go wrong before the meter is even connected. On many modern vehicles, opening a door tells the body control module that the driver has returned. That single input can wake multiple modules, restart sleep timers, turn on courtesy circuits, and make a normal vehicle look as if it has a battery-drain problem.

The challenge is simple: technicians often need a door open to reach an interior fuse panel, watch a meter, or connect diagnostic equipment—but the vehicle needs to believe that door is closed. A purpose-built automotive door latch simulation tool solves that conflict without relying on a loose screwdriver or another improvised object.

Why opening a car door changes your parasitic-draw reading

A modern door latch is more than a mechanical catch. Its door-ajar signal can be shared with the body control module and other systems on the vehicle network. When the latch reports an open door, the vehicle may:

• Turn on dome, courtesy, puddle, or warning lights
• Wake the instrument cluster and infotainment system
• Activate body, security, keyless-entry, or communication modules
• Restart the countdown that must finish before modules enter sleep mode

The exact response varies by make, model, and configuration. The important point is that the current shown immediately after a door opens is often an awake-state reading—not the vehicle's true key-off draw after every module has timed out.

How a false reading wastes diagnostic time

If you begin testing while modules are awake, you can end up chasing a drain that does not exist. Pulling fuses, reopening the door, pressing the remote, or moving a nearby proximity key can wake the network again and restart the waiting period. The reading may rise and fall as modules communicate, making the problem appear intermittent.

This is why an accurate test depends on repeatable conditions. Before condemning a circuit, confirm that the vehicle has completed its specified shutdown sequence. Do not assume that one universal current limit or sleep time applies to every vehicle; use the manufacturer's service information for the vehicle in front of you.

Keep the door open while the vehicle sees it as closed

A door latch simulator engages the latch so the switch reports a closed state while the physical door remains open. You retain access to the cabin and fuse panel while giving the modules a chance to time out normally.

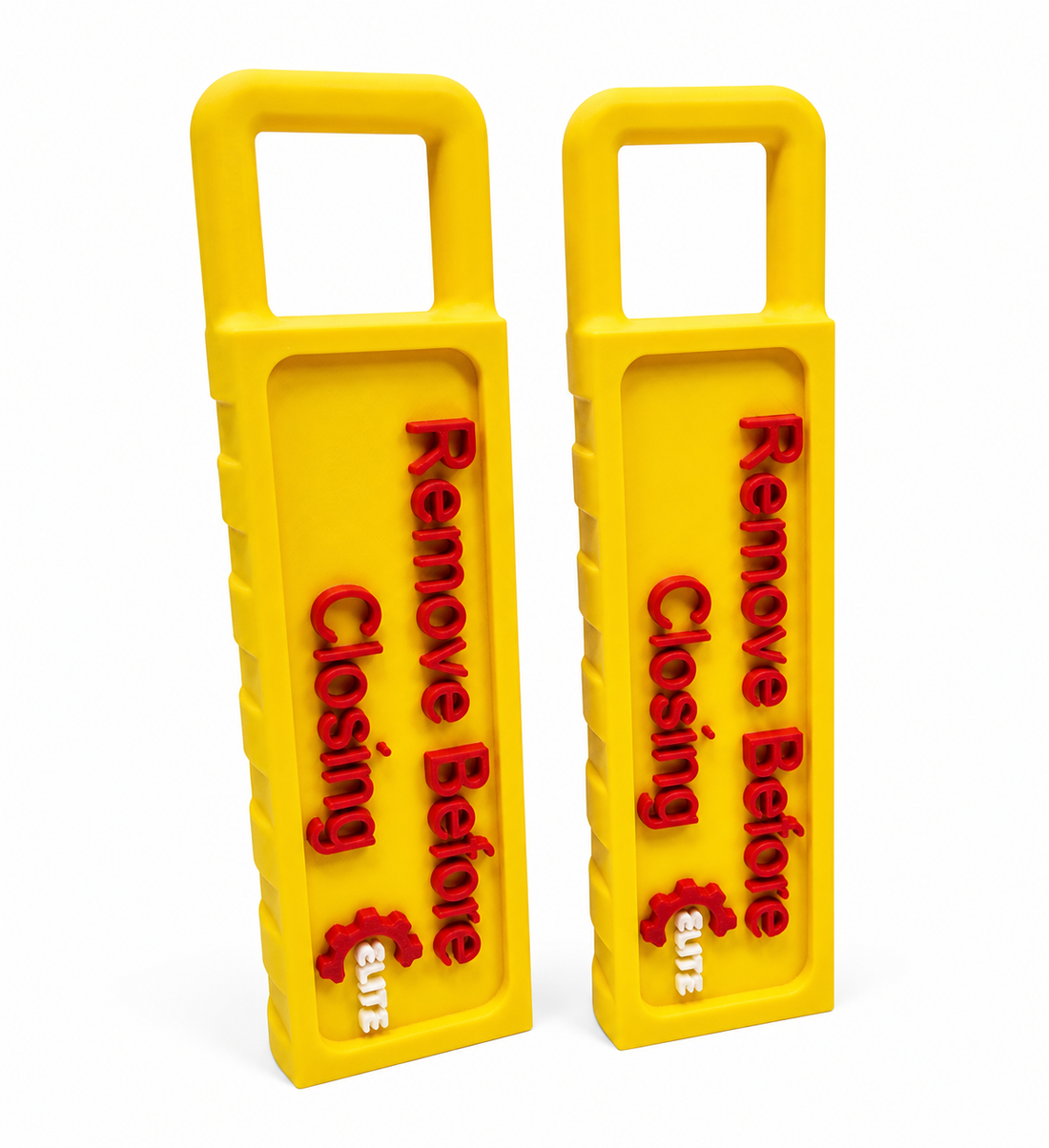

Elite Engineering's Door Ajar Bypass and Door Closed Simulator is made for parasitic-draw testing, module-sleep verification, scanning, and programming work. Each set includes two high-visibility, 3D-printed PLA tools marked with a “Remove Before Closing” warning. The bright color and clear reminder help prevent the most important mistake: attempting to close the door while the latch is already engaged.

A practical workflow for a more accurate parasitic-draw test

For a fuller walk-through, see our related guide on how to test for a parasitic draw with the vehicle doors open. The core setup is:

1. Check the service information. Find the manufacturer's test procedure, expected sleep time, and acceptable key-off draw for that exact vehicle. Verify the battery is adequately charged before diagnosing a drain.
2. Prepare all access points first. Open the door, lower a window if appropriate, expose the needed fuse panels, switch off lights and accessories, and move proximity keys far enough away that they will not keep waking the vehicle.
3. Engage the latch simulator. Insert it gently into the open door's latch until the latch reports closed. Never force the tool. Confirm that the door-ajar message and courtesy-light response behave as expected.
4. Connect your measuring equipment safely. Follow the equipment maker's and vehicle maker's procedures. If using a meter in series, use the correct fused input and never crank the engine or operate a high-current load through the meter. A suitable low-current clamp or another approved method may be preferable for some tests.
5. Allow the vehicle to sleep. Do not touch handles, operate remotes, open another monitored panel, or disturb the vehicle during the specified timeout. Watch for the current to settle rather than judging the first number displayed.
6. Isolate the circuit methodically. Once excessive draw is confirmed, use the manufacturer's diagnostic process to narrow the source without unnecessarily waking the network.
7. Restore the latch before closing the door. Remove the simulator, release the latch using the normal handle operation, and verify that the latch is fully open. Only then should the door be closed.

Important: Never close or slam a door against a tripped latch or an installed simulator. Inspect the latch position first and release it normally.

Why not just use a screwdriver?

A screwdriver is commonly used to trip a latch, but it was not designed for this job. A metal shaft can slip, scratch the finish around the latch, or apply force in the wrong place. It is also easy to forget because it does not provide a conspicuous warning before the door is closed.

A dedicated simulator gives the process a consistent setup and a visible safety reminder. It also keeps screwdrivers available for the work they were designed to do. For a professional shop, that small improvement in repeatability can matter across dozens of electrical-diagnostic jobs.

Other times a door-closed simulator can help

The same setup can be useful whenever a procedure requires access through an open door but a closed-door state is desirable. Examples include monitoring module shutdown, checking whether a network goes to sleep, completing certain scan-tool routines, and supporting programming work. Always follow the applicable service procedure; the tool changes the latch state, not the manufacturer's requirements.

Frequently asked questions

How long should I wait for a vehicle to enter sleep mode?

There is no single correct time for every vehicle. Some systems settle quickly, while others require a much longer timeout. Use model-specific service information and watch for a stable reading.

Will the tool fit every vehicle?

It is designed for common automotive door-latch applications, but latch shapes and procedures vary. Inspect the latch, make sure the tool engages naturally, and never force it into an incompatible mechanism.

Can I use it during scanning or programming?

It can help keep a door open while the vehicle receives a closed-door signal, which is useful in many diagnostic and programming situations. Follow the scan-tool and vehicle-manufacturer instructions for the specific procedure.

What must I do before closing the door?

Remove the simulator and use the door handle to return the latch to its fully open position. Visually verify the latch before closing the door.

A small tool for cleaner diagnostic results

Parasitic-draw testing is already time-sensitive. Avoid adding a false door-open load or repeatedly restarting the sleep timer. The Elite Engineering Automotive Door Latch Simulation Tool gives technicians a simple, visible way to keep access to the vehicle while creating the closed-door condition the test requires.
