How to Test for a Parasitic Draw With the Vehicle Doors Open

A parasitic-draw test often requires access to the passenger compartment, fuse panels and scan-tool connections. However, leaving a door open can keep interior lights and electronic modules awake, preventing the vehicle from reaching its normal key-off sleep state.

Technicians commonly solve this problem by placing the door latch into the closed position while leaving the physical door open.

The Elite Engineering automotive door-latch simulation tool provides a visible, purpose-built way to simulate a closed door during parasitic-draw and module-sleep testing.

Why an Open Door Can Affect Parasitic-Draw Testing

Modern vehicles use door-latch switches as inputs for several systems. When a door is shown as open, the vehicle may keep certain circuits active.

Depending on the vehicle, this can include:

• Interior lighting

• Body control modules

• Instrument-panel displays

• Infotainment systems

• Door modules

• Keyless-entry systems

• Communication networks

• Retained accessory power

• Warning indicators

If these systems remain awake, the current reading may be significantly higher than the vehicle’s true key-off draw.

Why Do Vehicle Modules Need Time to Go to Sleep?

Turning off the ignition does not immediately shut down every electronic module.

Many modules remain active temporarily while they:

• Save learned information

• Monitor locks and security systems

• Complete internal checks

• Communicate with other modules

• Wait for additional user activity

• Time out retained-accessory functions

The amount of time required varies considerably between vehicles. Some systems sleep within several minutes, while others take much longer.

Always consult manufacturer service information for the expected shutdown procedure, waiting period and acceptable current specification.

How Can You Leave the Door Open Without Keeping the Vehicle Awake?

The door can remain physically open while its latch is placed in the closed position. This allows the door-ajar switch to report that the door is closed.

A latch-simulation tool is inserted into the latch in place of the door striker. The latch closes around the tool and changes the door-ajar input while the technician retains access to the interior.

This is useful when the interior fuse panel, battery-monitoring equipment or diagnostic connector must remain accessible.

Why Not Use a Screwdriver?

Technicians have traditionally used screwdrivers, extensions and other improvised objects to operate door latches.

Although that may close the latch, it has several disadvantages:

• A metal screwdriver may scratch latch components

• The tool can slip while operating the latch

• It may be easy to forget that the latch is closed

• Someone may attempt to close the door

• An improvised tool may not fit the latch consistently

• The screwdriver may be needed elsewhere during testing

The Elite Engineering tool is made from lightweight PLA plastic and has a bright, high-visibility design.

Its prominent “Remove Before Closing” warning reminds the technician that the latch must be released before the physical door is shut.

Important: Never Close the Door With the Latch Set

A door should never be slammed or pushed against its striker while the latch is already in the closed position.

Doing so may damage:

• The latch assembly

• The striker

• The door

• The surrounding bodywork

• Latch-position sensors

Always return the latch to its open position before closing the door.

The bright color and warning label on the Elite Engineering tool are intended to make the installed tool difficult to overlook.

Basic Parasitic-Draw Testing Procedure

The exact procedure varies by vehicle, but a general testing process may include:

1. Confirm that the battery is fully charged and in serviceable condition.

2. Turn off the ignition and remove the key or move the key fob away from the vehicle.

3. Switch off accessories and remove anything connected to the power outlets.

4. Open the doors needed for access.

5. Install a door-latch simulation tool in each necessary latch.

6. Confirm on the instrument cluster or scan tool that the doors report closed.

7. Connect the current-measuring equipment using an appropriate testing method.

8. Allow the vehicle to complete its shutdown process.

9. Monitor the current until it stabilizes.

10. Compare the reading with the manufacturer’s specification.

11. Isolate the affected circuit using an appropriate diagnostic procedure.

Avoid disconnecting the battery unnecessarily after the vehicle has entered its sleep state, as this can wake modules or change the condition you are attempting to measure.

Verify That the Vehicle Recognizes the Door as Closed

Do not assume that physically closing the latch guarantees the vehicle sees the door as closed.

Verify the status by checking:

• The interior lights

• The door-ajar warning

• The instrument cluster

• A scan-tool door-status PID

• Retained-accessory operation

• The vehicle’s body-control data

Some vehicles use multiple latch positions or additional hood and liftgate switches. Every relevant opening may need to be addressed before the vehicle will enter sleep mode.

Useful for More Than Battery-Drain Testing

A door-latch simulation tool can also help with:

• Module sleep verification

• Network shutdown testing

• Scan-tool diagnostics

• Programming procedures

• Interior electrical testing

• Door-ajar switch diagnosis

• Retained-accessory power testing

• Checking body-control module inputs

• Observing module activity with the door open

It gives technicians a repeatable way to control the latch input without physically closing the door.

Two Tools Included

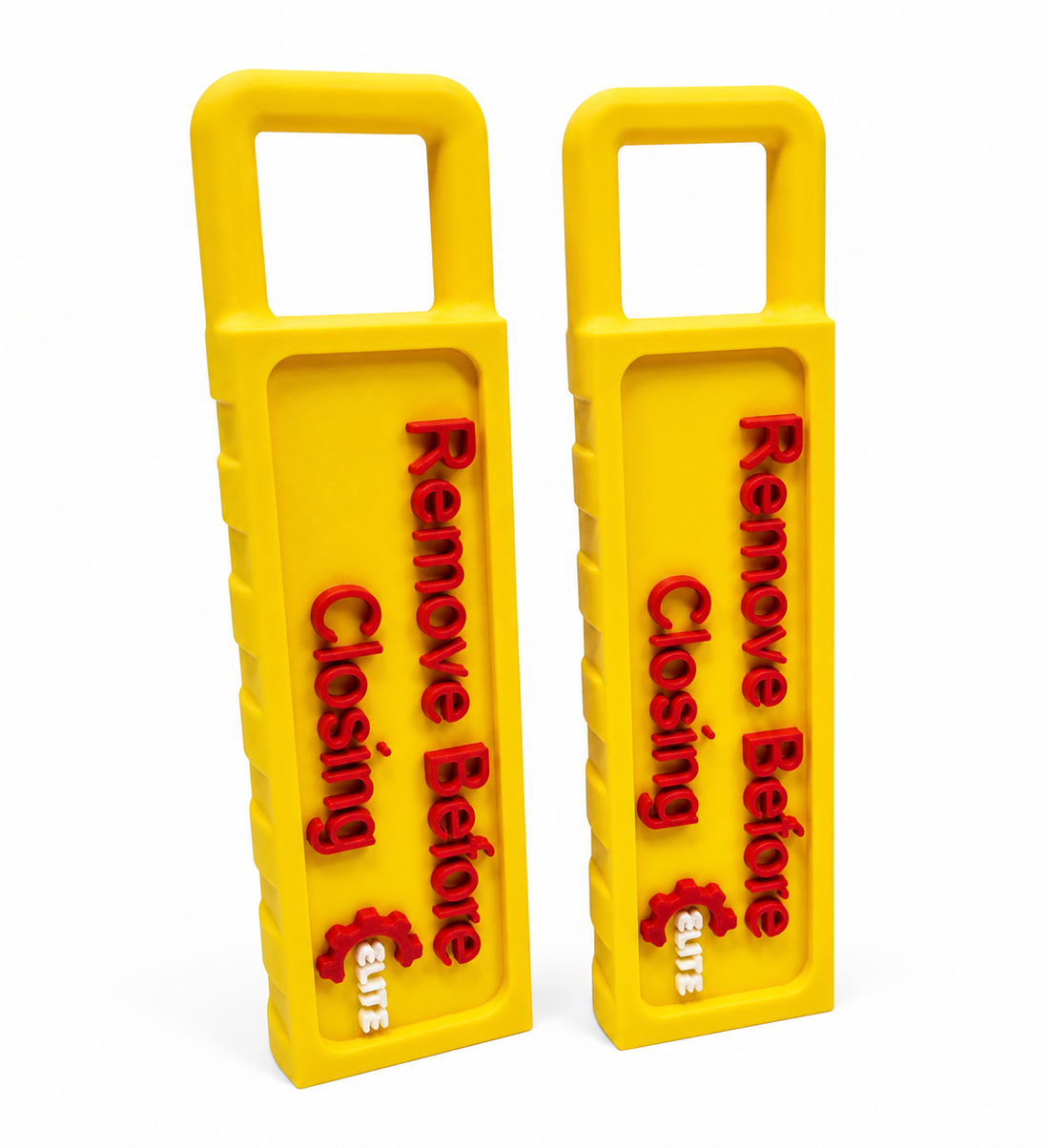

Each Elite Engineering set includes two door-latch simulation tools.

This allows a technician to simulate more than one closed door at a time, which can be useful when access is needed on both sides of the vehicle or when multiple door inputs must be controlled.

The tools are:

• Bright and easy to see

• Lightweight

• 3D printed from PLA

• Safer around latch surfaces than many improvised metal objects

• Marked with a removal warning

• Designed for everyday shop use

Frequently Asked Questions

Why won’t the parasitic draw decrease?

A module may still be awake because of an open door, hood or liftgate; a nearby key fob; recent scan-tool activity; an active communication network; or an actual electrical fault. Check all closure inputs and follow the manufacturer’s shutdown procedure.

How long should I wait for modules to sleep?

There is no universal waiting period. Sleep time varies by vehicle and system. Consult manufacturer service information rather than relying on one standard time.

Can I close the latch with a screwdriver?

A screwdriver may operate some latches, but it can slip, scratch components and be overlooked before the door is closed. A dedicated, brightly colored simulation tool provides a more visible and repeatable method.

Do I need to simulate every door?

Only the openings affecting the test must be simulated, but some vehicles will not fully shut down if any door, hood or liftgate is reported open. Verify the status of each input with a scan tool when possible.

Can the door be closed while the tool is installed?

No. Remove the tool and release the latch before closing the physical door.

How many tools are included?

Each set contains two latch-simulation tools.

Make Parasitic-Draw Testing More Repeatable

Accurate battery-drain diagnosis depends on recreating the vehicle’s normal parked condition. If the vehicle believes a door is open, the current reading may reflect modules and lights that would normally be off.

A dedicated latch tool allows the door to remain open for access while signaling the vehicle that the latch is closed.

Shop the Elite Engineering automotive door-latch simulation tool.
