Kawasaki KLX140 / KLX230 Flag Mount: Fitment and Axle-Block Guide
A KLX140 or KLX230 flag mount needs to match the motorcycle’s rear-wheel hardware and the base of the whip you plan to use. Elite Engineering’s axle-block design provides the flag attachment point by replacing the compatible factory rear axle block.

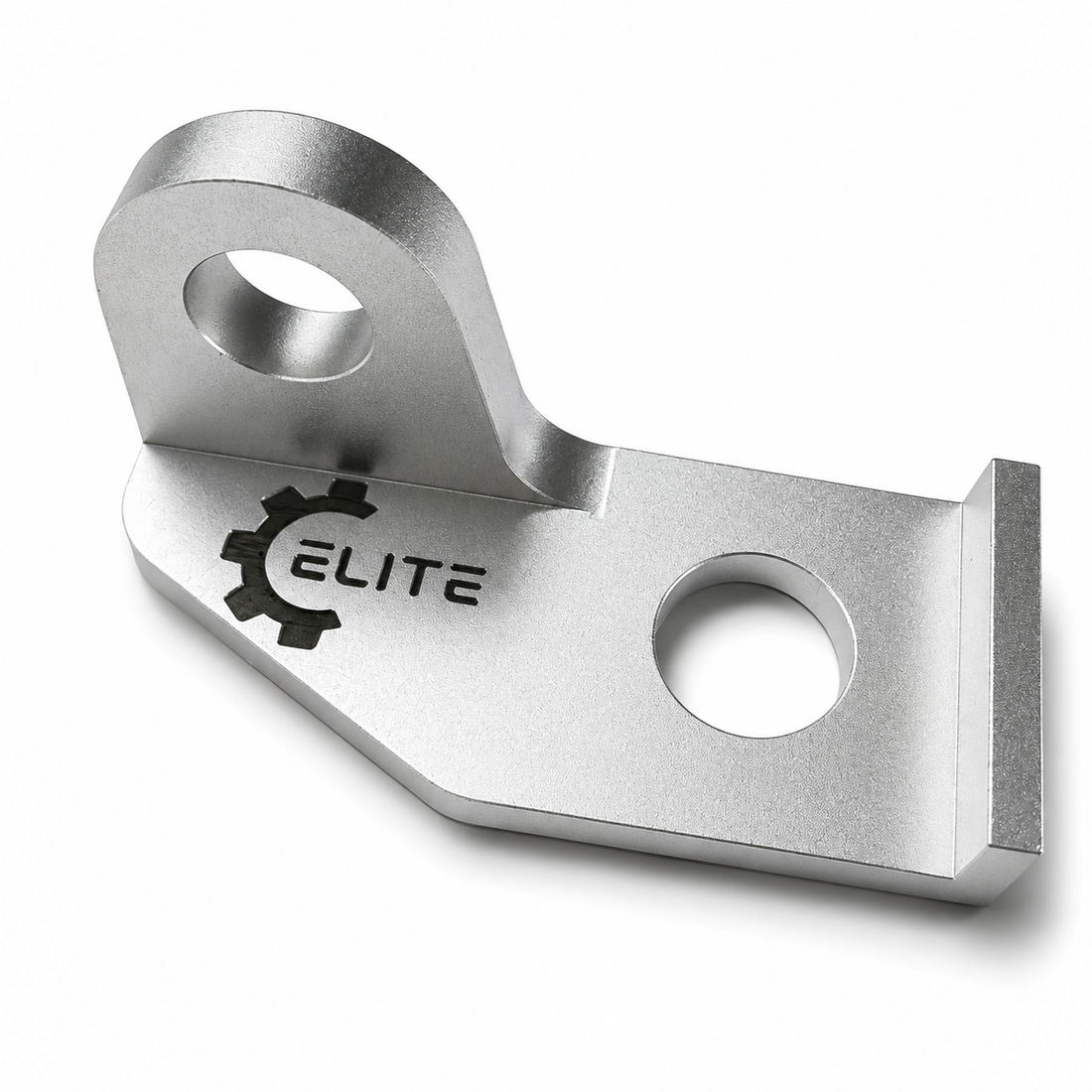

The Kawasaki KLX140/KLX230 billet axle-block flag whip mount avoids drilling the frame or fender on compatible applications. This guide covers which product to choose, how to compare your bike and what to check before installation.
KLX140 and KLX230: start with the listed applications
| Motorcycle | Current listing | Before ordering |
|---|---|---|
| Kawasaki KLX140 | 2008+ | Check the exact model designation, year and rear axle-block arrangement. |
| Kawasaki KLX230 | 2020+ | Compare the axle-block area and any changed wheel or swingarm components. |
These are the application groups in the current product listing. Identify the full model name and year from your bike’s information; do not treat a shared engine size as proof that every variant uses the same rear-wheel parts.
Send your model, year and clear photos of the axle-block area to Elite Engineering if your setup differs from the gallery. For a KLX300, start with the separate KLX300 fitment guide and its linked product.
What an axle-block flag mount replaces
The bracket takes the place of the compatible factory rear axle block and adds a dedicated attachment point for the flag hardware. It is different from a holder bolted to the outside of an axle nut or a clamp attached elsewhere on the motorcycle.
The billet aluminum design keeps the flag attachment at the rear wheel. On the listed compatible setup, installation requires no drilling or welding. Use the flag-mount comparison if you are choosing among axle-block, axle-nut, fender, clamp or seat-bolt designs.
KLX140 Bracket Dimensions and Fitment Drawings
The supplied KLX140 drawing dimensions are in millimeters. Use both views when comparing the replacement block with your motorcycle.
| Drawing reference | Dimension (mm) |
|---|---|
| Flag-mount hole diameter | 13 |
| Axle-hole diameter (logo side) | 15 |
| Overall length | 69.75 |
| Front-view body height | 31.50 |
| Main web thickness shown in the top view | 4.75 |
| Right-hand return depth shown in the top view | 12.25 |
| Top-view upper straight edge to hole center | 22.25 |
Use the labeled views to compare the KLX140 bracket geometry with your setup. The 22.25 mm callout locates the hole center; it is not a hole diameter. The axle hole on the side with the ELITE logo is Ø15 mm. The separate flag-mount hole shown in the top view is Ø13 mm. Match the separate whip holder’s mounting interface and retaining hardware to that flag-mount opening.
What is included—and what your flag setup still needs
The package includes the Elite Engineering billet aluminum axle-block flag mount. The flag, whip and separate flag-base hardware are not included.
Check the connection on the flag holder you plan to use. Pole diameter, base-stud diameter, thread pitch and mounting-hole diameter describe different parts of the assembly. Confirm the actual mating dimensions and the space needed for the retaining hardware.
A quick-release flag holder is a separate component. Its name alone does not establish compatibility with this bracket. Our dirt-bike whip flag selection guide explains the base, pole and retention checks.
Installation planning for the rear axle
- Have the correct service information for your exact KLX model and year available.
- Support the motorcycle securely and follow the rear-wheel procedure needed to replace the factory axle block.
- Confirm the replacement block seats correctly and the adjuster arrangement works as intended.
- Restore wheel alignment, chain slack and axle tightening using Kawasaki’s specifications for that motorcycle.
- Install compatible flag hardware and check wheel rotation, brake operation and clearance around the wheel, chain, exhaust, bodywork and rider.
Account for suspension movement and whip flex. A flag that clears the bike while parked can move toward it during a ride. Reinspect the connection after installation, after transport and after a tip-over.
Check the finished flag height
An axle-block mount places the base near the rear wheel. The required installed height is a separate check from whether the bracket fits. Measure the completed setup on level ground using the reference point required by the riding area.
Use our dune flag height and color guide to find official guidance for Little Sahara, Glamis and Oceano, then check the land manager’s current instructions before the trip.
Common KLX fitment questions
Does this replace a factory axle block?
Yes, on compatible listed applications. It is not a universal clamp or an axle-nut adapter.
Is the whip flag included?
No. Plan for a compatible flag, whip and retaining hardware separately.
Does it fit my exact KLX variant?
Use the listing’s application information and photos, and confirm your full model and year if the mounting area differs. This guide does not extend fitment to an unlisted variant.
View the KLX140/KLX230 axle-block flag mount and installation photos to compare your motorcycle and choose the correct mounting setup.
