How to Add a Headlight Switch to a Yamaha TTR230

Adding an aftermarket headlight to a Yamaha TTR230 can make the bike more useful during early-morning rides, evening trail rides and changing light conditions.

However, installing the light creates another question: Where do you mount the headlight switch?

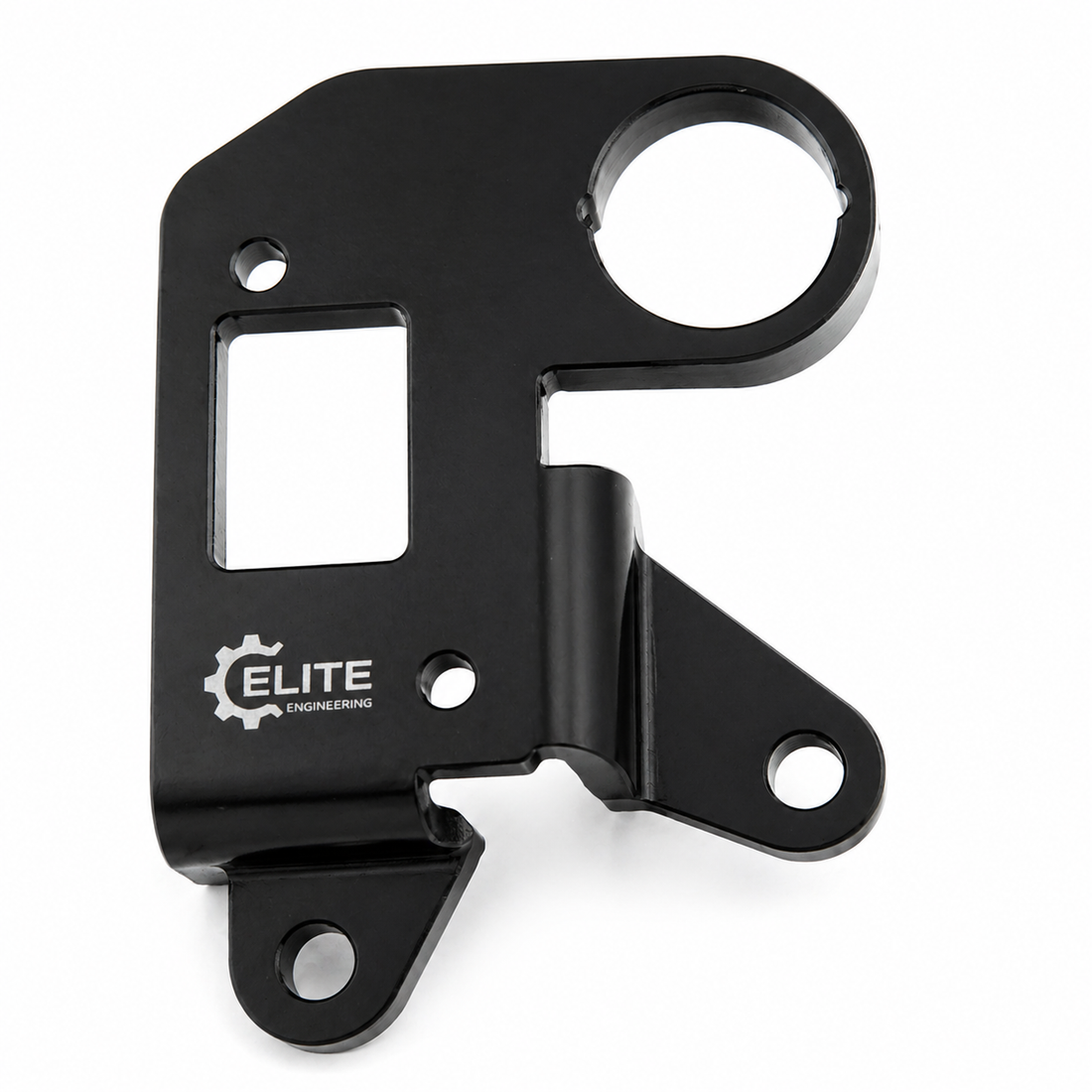

Drilling the plastics or attaching a loose switch to the handlebars can leave the installation looking unfinished. The Elite Engineering Yamaha TTR230 handlebar switch bracket provides a clean mounting location for a standard 20mm switch on 2005 and newer TTR230 models.

Why Add a Separate Headlight Switch?

A dedicated switch gives the rider direct control over an aftermarket headlight or other compatible electrical accessory.

Depending on the electrical system and installed components, a handlebar-mounted switch may be used for:

• Aftermarket headlights

• Auxiliary LED lights

• Trail lights

• USB charging ports

• Other low-current switch-controlled accessories

• Relay-controlled electrical accessories

The switch should be properly rated for the circuit or used to control an appropriate relay. Follow the instructions supplied with the electrical accessory and verify the motorcycle’s available electrical capacity before installation.

Where Should the Switch Be Mounted?

The switch should be accessible from the riding position without interfering with normal control operation.

A good switch location should:

• Remain within easy reach

• Avoid contact with the fuel tank

• Clear the throttle and control cables

• Avoid interference with the brake hose

• Remain visible to the rider

• Stay protected from accidental activation

• Keep the wiring neatly routed

The Elite Engineering bracket provides a dedicated mounting location without requiring a hole in the headlight shell or plastic bodywork.

Designed for 20mm Switches

The bracket accepts a standard round 20mm panel-mount switch.

Before ordering a separate switch, measure its mounting body rather than the outer face. The portion that passes through the bracket must match the 20mm opening.

Switches may differ in:

• Mounting diameter

• Terminal arrangement

• Current rating

• Operating voltage

• Number of positions

• Waterproofing

• Illumination requirements

Confirm that the selected switch is electrically and physically suitable for your intended accessory.

A compatible switch can also be added when purchasing the TTR230 switch bracket.

Direct Fit for 2005 and Newer TTR230 Models

The bracket is designed for Yamaha TTR230 motorcycles from 2005 onward.

Its model-specific design provides a clean installation without relying on a bulky universal clamp or homemade mounting plate.

Bracket features include:

• Fitment for 2005+ Yamaha TTR230 models

• Opening for a standard 20mm switch

• Anodized aluminum construction

• Compact factory-style appearance

• No need to drill the plastics

• Suitable for headlights and other switched accessories

• Easy installation with basic tools

Compare your motorcycle and control layout with the product photos before ordering, especially if the handlebars or controls have been modified.

Anodized Aluminum Construction

The bracket is manufactured from aluminum and protected with an anodized finish.

Aluminum is well suited for this application because it is:

• Lightweight

• Strong

• Resistant to rust

• Suitable for outdoor use

• Cleaner looking than many homemade mounts

The anodized finish provides additional protection against corrosion and normal off-road exposure.

Why Not Drill a Hole in the Plastic?

Some riders install a switch by drilling directly into a plastic panel or headlight shell. Although that may work, it permanently modifies the motorcycle.

Drilling can create several problems:

• The switch may be difficult to reach

• Thin plastic may flex during operation

• The hole can crack or enlarge

• Wiring may rub against an unfinished edge

• Replacing the switch may leave an unused hole

• Original plastics may be damaged permanently

A separate aluminum bracket allows the switch to be installed without cutting the motorcycle’s bodywork.

Better Than a Universal Handlebar Clamp

Universal clamps can be useful, but they may take up too much room on the handlebars or interfere with the controls.

Depending on the design, a universal switch mount may:

• Rotate around the handlebar

• Require additional spacers

• Contact cables or hoses

• Position the switch awkwardly

• Add unnecessary hardware

• Look out of place on the motorcycle

A TTR230-specific bracket provides a compact location designed around the motorcycle’s existing layout.

General Installation Process

The bracket installation itself is straightforward, although the electrical connections will depend on the accessory and wiring configuration.

A general process includes:

1. Place the motorcycle on a stable surface.

2. Disconnect the battery or electrical power when appropriate.

3. Identify the bracket mounting location.

4. Install the bracket without pinching any wires or cables.

5. Insert the 20mm switch into the bracket.

6. Secure the switch using its supplied retaining hardware.

7. Route the wiring away from heat, sharp edges and moving components.

8. Connect the switch according to the accessory manufacturer’s instructions.

9. Turn the handlebars fully in both directions and verify adequate wire slack.

10. Test the accessory and confirm correct switch operation.

Do not allow the wiring to restrict steering movement or contact the exhaust.

Use a Relay When Appropriate

A small panel-mounted switch may not be designed to carry the full current required by a powerful headlight or accessory.

In those applications, the switch should control a relay rather than carrying the accessory’s full electrical load directly.

Whether a relay is required depends on:

• Accessory current draw

• Switch current rating

• System voltage

• Wiring size

• Manufacturer instructions

Use an appropriate fuse and wiring protection. If you are uncertain about the electrical installation, have the circuit installed by someone experienced with motorcycle wiring.

Check the Motorcycle’s Electrical Capacity

The bracket provides a mounting location for the switch, but it does not increase the motorcycle’s electrical output.

Before adding a headlight or other accessory, verify that the charging system can support the additional load. Excessive electrical demand may discharge the battery or affect other circuits.

Consider the total current required by:

• The headlight

• Tail and marker lights

• USB charging accessories

• Heated equipment

• Other added electrical devices

Always follow the specifications supplied with the electrical accessory.

Frequently Asked Questions

What years does the bracket fit?

It is designed for Yamaha TTR230 models from 2005 and newer.

What size switch does it hold?

The bracket is designed for a standard round 20mm panel-mount switch.

Is the switch included?

The bracket and switch options are shown on the product page. A compatible switch can be added when ordering.

Can it control accessories besides a headlight?

Yes. The bracket can hold a compatible 20mm switch for auxiliary lights, USB power or other suitable accessories. The electrical circuit must be designed correctly for the accessory.

Does installation require drilling?

The bracket provides a switch location without requiring a hole in the motorcycle’s plastic bodywork.

Is the bracket plastic?

No. It is manufactured from anodized aluminum.

Will I need a relay?

That depends on the switch rating and the current required by the accessory. Higher-current accessories should generally be controlled through an appropriately rated relay and fuse.

Give Your TTR230 Switch Installation a Factory-Style Finish

A headlight upgrade should not end with a loose switch, zip ties or an unnecessary hole drilled into the plastics.

The Elite Engineering bracket provides a clean, durable mounting location for a 20mm headlight or accessory switch on 2005 and newer Yamaha TTR230 motorcycles.
