Brake Lathe Feed Not Working? Check the Feed Nut

When the feed mechanism on a brake lathe stops moving smoothly, the problem may not be the motor or the entire gearbox. On many Snap-On, FMC and JBC machines, the cause can be a worn or damaged feed nut.

The feed nut engages the machine’s lead screw and transfers its rotation into carriage movement. As the nut wears, clearance increases until the feed becomes inconsistent or stops working altogether.

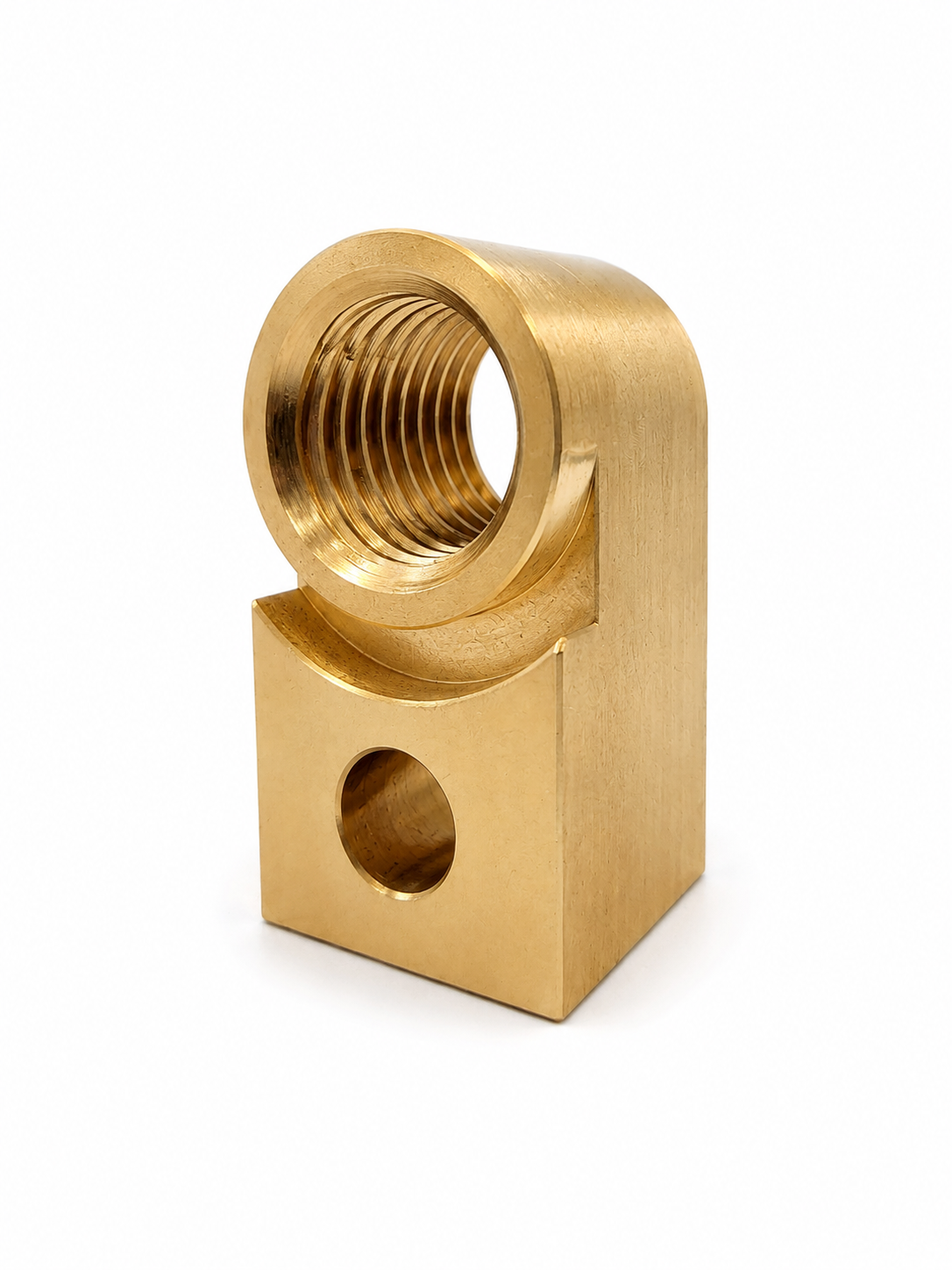

The Elite Engineering solid-brass brake-lathe feed nut replaces part number 90077 on several popular Snap-On, FMC and JBC brake lathes.

What Does a Brake-Lathe Feed Nut Do?

The feed system slowly moves the cutting tools across a brake rotor or drum.

As the lead screw rotates, its threads engage the feed nut. The nut converts that rotation into controlled linear movement of the carriage or cutting assembly.

The feed nut must fit the lead screw closely enough to produce:

• Smooth carriage movement

• Consistent feed rate

• Controlled tool travel

• Minimal unwanted play

• Repeatable machining results

Because the nut remains in contact with the rotating lead screw, its internal threads can eventually wear.

Symptoms of a Worn Brake-Lathe Feed Nut

Common symptoms may include:

• Excessive carriage play

• Feed movement that hesitates or skips

• Carriage movement that stops under load

• Lead screw turning without moving the carriage

• Uneven or inconsistent feed travel

• Excessive backlash when changing direction

• Internal threads that appear rounded or stripped

• Feed operation improving when pressure is applied manually

These symptoms do not automatically prove the nut is defective, but they justify inspecting the feed nut and lead screw.

Why Does the Feed Nut Wear Out?

Brake lathes often remain in service for decades. Even a durable feed nut will experience wear after thousands of machining cycles.

Wear may be accelerated by:

• Lack of lubrication

• Dirty or contaminated lead-screw threads

• Abrasive brake dust

• Corrosion

• A damaged lead screw

• Forcing the carriage

• Incorrect adjustment

• Repeated heavy shop use

• Misalignment within the feed mechanism

Brake dust and old lubricant can combine into an abrasive paste that gradually wears the threads.

How to Check the Feed Nut

Disconnect the lathe from electrical power before inspecting or servicing its feed mechanism.

A general inspection may include:

1. Clean the accessible feed components.

2. Inspect the lead screw for damaged or flattened threads.

3. Check for excessive movement between the feed nut and lead screw.

4. Operate the mechanism manually where permitted by the manufacturer.

5. Watch for a lead screw that rotates without moving the carriage.

6. Remove and inspect the feed nut if necessary.

7. Look for cracked, rounded or missing internal threads.

Follow the brake-lathe manufacturer’s service procedures. Guards and covers should be reinstalled before operating the machine.

Check the Lead Screw Before Replacing the Nut

A new feed nut cannot correct a severely damaged lead screw.

Inspect the screw for:

• Flattened threads

• Sharp or rolled thread edges

• Corrosion

• Deep wear in one section

• Bending

• Accumulated metal chips or brake dust

• Areas where the nut binds

If the lead screw is damaged, installing a new nut may result in continued poor operation or accelerated wear of the replacement part.

The screw should be cleaned and lubricated with the product specified by the equipment manufacturer.

Replacement for Part Number 90077

The Elite Engineering feed nut is designed as a replacement for part number 90077.

Compatible applications include:

• FMC/JBC 601

• FMC/JBC 701

• Snap-On EEBR300A

• Snap-On 6760

• Snap-On 6780

• Other brake lathes using feed nut #90077

Model names alone should not be the only fitment check. Older shop equipment may have been repaired or modified during its service life.

Compare the original component, dimensions and part number with the replacement feed-nut product photos before ordering.

Why Use Solid Brass?

The replacement nut is precision-machined from solid brass.

Brass is commonly suited to threaded motion components because it provides:

• Smooth thread engagement

• Good wear characteristics

• Resistance to corrosion

• Reliable operation under repeated movement

• Protection for the mating steel lead screw

Using a replaceable brass nut allows the nut to serve as the wear component rather than sacrificing the more difficult-to-replace lead screw.

Can a Worn Feed Nut Affect Rotor Finish?

It can contribute to machining problems if the wear allows the carriage to move inconsistently.

Possible results include:

• An irregular feed pattern

• Tool movement that hesitates

• Inconsistent surface appearance

• Chatter under certain conditions

• Difficulty maintaining a steady cut

However, rotor-finish concerns can also be caused by worn arbor components, incorrect tool setup, loose cutting bits, excessive depth of cut, poor rotor mounting or vibration elsewhere in the machine.

The complete lathe setup should be inspected rather than assuming the feed nut is responsible for every finish problem.

General Replacement Considerations

The exact replacement procedure depends on the lathe model.

In general, replacement may require:

• Disconnecting electrical power

• Removing the necessary guards or covers

• Releasing the old feed nut

• Cleaning the lead screw

• Inspecting related components

• Installing the replacement nut

• Adjusting the feed mechanism where required

• Applying the manufacturer-approved lubricant

• Manually checking the complete range of travel

• Reinstalling all safety guards

Do not force a new nut onto a dirty or damaged lead screw. The nut should engage smoothly without binding.

Refer to the manufacturer’s service information if adjustments or disassembly procedures are unclear.

Frequently Asked Questions

What brake lathes use feed nut #90077?

Known applications include FMC/JBC 601 and 701 machines and Snap-On EEBR300A, 6760 and 6780 brake lathes. Other models may also use #90077.

What is the replacement nut made from?

The Elite Engineering replacement is precision-machined from solid brass.

Will replacing the feed nut eliminate carriage play?

It may correct play caused by worn feed-nut threads. It will not repair a damaged lead screw, worn bearings or looseness elsewhere in the carriage assembly.

Why is the lead screw turning without moving the carriage?

The feed nut may be disengaged, improperly adjusted or stripped. The lead screw or other feed components could also be damaged.

Should the lead screw be lubricated?

Follow the equipment manufacturer’s lubrication instructions. Using the wrong lubricant can attract brake dust or damage components.

Does the replacement require modifications?

The nut is designed as a direct replacement for part #90077. No modifications should be required on a confirmed compatible application.
