Brake Lathe Cross Feed Has Play? How to Diagnose a Worn 90077 Feed Nut

If your older FMC, JBC, or Snap-On brake lathe still runs well but the cross feed has started feeling loose, delayed, or inconsistent, the problem may be a small mechanical wear part rather than the entire machine.

One component worth checking is the cross-feed nut. On many compatible brake lathes, this part is identified as feed nut #90077. As the nut wears, clearance can develop between it and the feed screw, which can create extra backlash and make precise adjustments harder.

What Does the 90077 Brake Lathe Feed Nut Do?

The feed nut works with the cross-feed screw to move the cutting assembly across the rotor or drum. As the feed screw turns, the nut converts that rotation into controlled movement of the cross slide.

Because brake-lathe work depends on small, predictable adjustments, wear in this mechanism can make an otherwise dependable machine feel sloppy.

Symptoms of a Worn Brake Lathe Feed Nut

Excessive Cross-Feed Backlash

Turn the cross-feed handwheel back and forth while watching the cross slide. If the handwheel moves noticeably before the slide begins moving in the opposite direction, there may be excessive clearance in the feed mechanism.

Some backlash is normal on older mechanical equipment, but a noticeable increase from how the machine used to operate is worth investigating.

Handwheel Movement Before the Cross Slide Responds

If you turn the handwheel and the cutting assembly does not immediately respond, the lost motion may be coming from wear between the feed screw and feed nut.

Difficulty Making Small Adjustments

Brake machining often requires very small positioning changes. Excessive play can make those adjustments frustrating because the free play has to be taken up before the cross slide actually moves.

Feed Movement Feels Loose or Inconsistent

A worn feed nut can contribute to movement that feels less precise, especially when changing direction.

Don't Automatically Blame the Feed Nut

Backlash does not automatically mean the #90077 nut is the only worn component. Before ordering parts, inspect the full cross-feed mechanism.

• Check the feed nut for thread wear or damage.
• Inspect the mating feed screw for worn or damaged threads.
• Check for loose hardware.
• Inspect cross-slide adjustment and related bushings or bearings.
• Look for any other source of movement in the feed assembly.

The goal is to identify where the lost motion is actually occurring instead of replacing parts unnecessarily.

A Simple Way to Check the Cross Feed

With the machine turned off and safely positioned, slowly reverse the direction of the cross-feed handwheel while watching the cross slide.

Pay attention to how far the handwheel moves before the slide responds. If most of the lost movement is occurring between the feed screw and the nut, the feed nut becomes a strong candidate for replacement.

Always follow the service procedures for your specific brake-lathe model when disassembling, adjusting, or servicing the machine.

Which Brake Lathes Use Feed Nut #90077?

Elite Engineering's replacement feed nut is designed as a direct replacement for part #90077 and is listed for the following compatible brake lathes:

• FMC / JBC 601
• FMC / JBC 701
• Snap-On EEBR300A
• Snap-On 6760
• Snap-On 6780
• Other brake lathes using feed nut #90077

Because many of these machines have been in service for years and may have been repaired or modified previously, compare your original component and confirm the part number before ordering.

Why Repair an Older Brake Lathe?

A good older brake lathe can still be a useful piece of shop equipment. The motor, arbor, gearbox, and main machine may have plenty of service life remaining even after smaller mechanical components begin to wear.

If the rest of the machine is in good condition, replacing a worn feed component can be a practical way to restore operation without replacing the entire lathe.

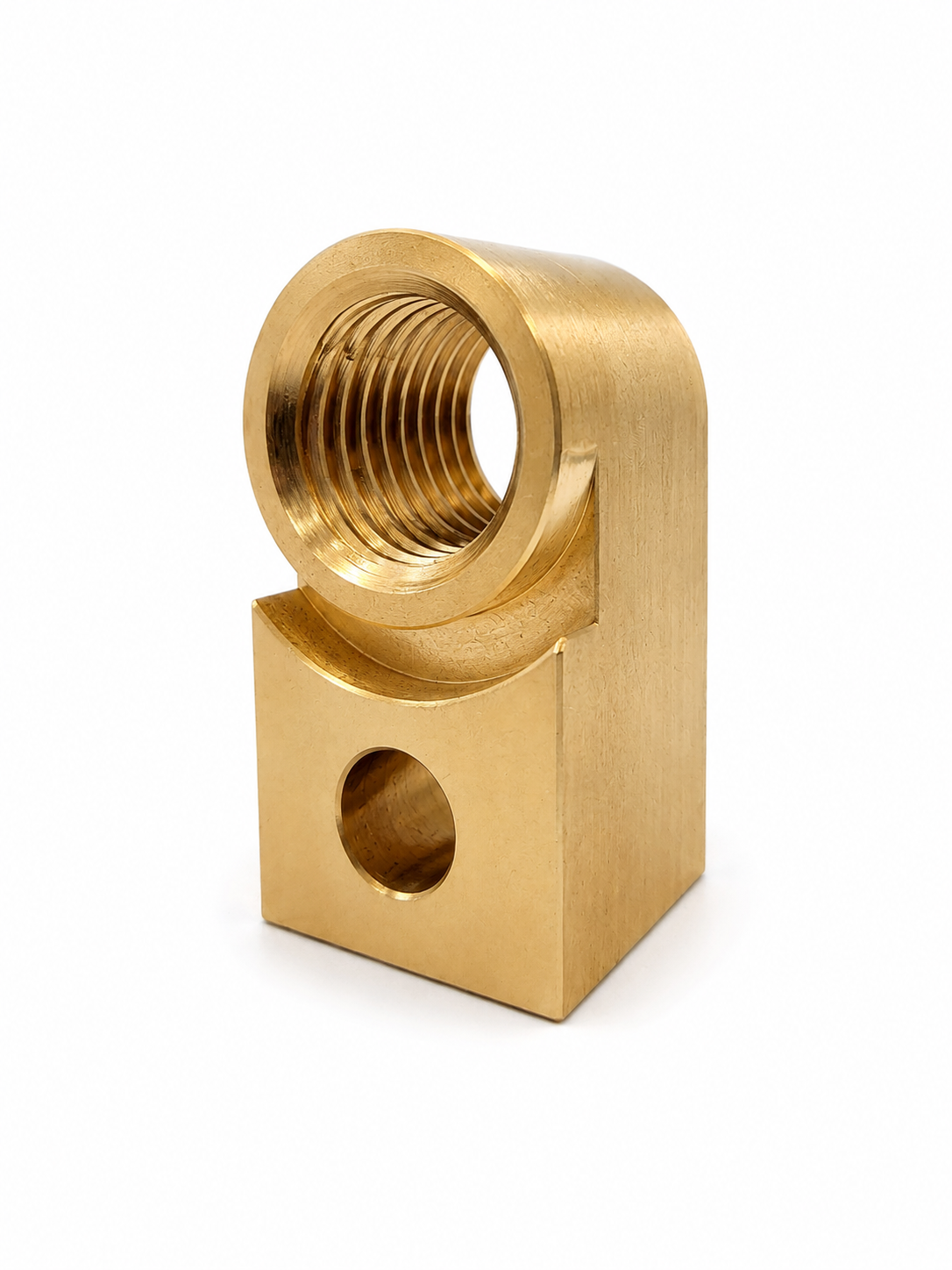

Solid-Brass Replacement for Brake Lathe Feed Nut #90077

Elite Engineering offers a precision-machined solid-brass replacement feed nut for part #90077. It is designed to install in place of the original component and help restore smooth, controlled cross-feed movement when the original nut has become worn or damaged.

• Solid brass construction
• Precision machined
• Direct replacement for feed nut #90077
• No modifications required for listed compatible applications
• Designed for repeated professional shop use

View the Elite Engineering 90077 Brake Lathe Feed Nut

You can also browse the Elite Engineering Brake Lathe Parts collection.

Check the Feed Screw While You're There

If the feed nut has significant wear, inspect the mating feed screw at the same time. Installing a new nut onto a badly worn screw may leave more backlash than expected and can shorten the life of the replacement part.

Look for damaged threads, uneven wear, corrosion, binding, or excessive looseness between the screw and nut.

Keep Your FMC, JBC, or Snap-On Brake Lathe Working

Older brake lathes are mechanical machines, and mechanical parts eventually wear. That does not necessarily mean the machine is finished.

If your FMC 601, FMC 701, JBC 601, JBC 701, Snap-On EEBR300A, 6760, or 6780 has developed excessive cross-feed play, inspect the feed mechanism before giving up on the lathe. A worn #90077 feed nut may be a straightforward repair that helps get the machine operating smoothly again.

Shop the solid-brass 90077 replacement feed nut from Elite Engineering.
